TRENDnet

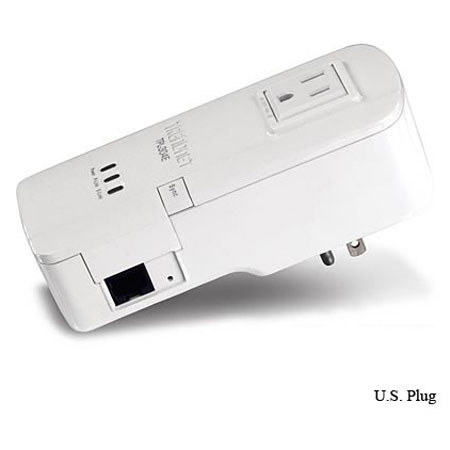

TRENDnet Powerline 200Mbps AV Adapter with Built-In Outlet

SKU: TNPL304E MFR: TPL-304E
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$40.38
Qty:
Add to Wishlist

About this item

The TRENDnet Powerline 200Mbps AV Adapter with Built-In Outlet uses any electrical outlet to create a secure high speed building-wide network. Connect one adapter to your network and plug another adapter into any electrical outlet on your electrical system for instant high speed network access. Never lose an electrical outlet with the built in socket on the front of the adapter. A Noise Filter maintains optimum connection speeds when everyday household appliances such as toasters, washing machines and coffee makers create electrical background noise.

Connect adapters quickly using the convenient one-touch 'Sync' button. Use up to 8 adapters to network devices in different rooms without running new cabling. Power Save mode reduces power consumption by up to 70%. Quality of Service technology prioritizes video, audio and online gaming. Advanced AES encryption secures your network. This adapter is ideal for use in buildings that interfere with wireless networking signals.

What's Included With This Item

  • TRENDnet Powerline 200Mbps AV Adapter with Built-In Outlet
  • Multi-Language Quick Installation Guide
  • CD-Rom (Utility & User's Guide)
  • Cat. 5 Ethernet Cable
  • TRENDnet 3 Year Limited Warranty

Key Features

  • Connect one 200Mbps Powerline AV Adapter to the Internet and then plug in up to 7 additional adapters for instant building connectivity
  • 1 x 10/100Mbps Auto-MDIX RJ-45 Ethernet port
  • 1 x Electrical power socket
  • Diagnostic LEDs convey Power, Powerline and Ethernet activity
  • Electrical Noise Filter boosts performance
  • One-touch connect button networks adapters quickly
  • Power Save mode reduces electrical consumption by 70%
  • Advanced encryption (AES) ensure total network security
  • Windows based configuration utility for a quick and simple installation
  • IPv4 and IPv6 network protocol support
  • Supports Wake-On-Link when in Standby mode
  • Neighbor network support for up to 4 overlapping networks
  • Network signal transmitted up to 300 meters (984 ft.)
  • Auto QoS support through traffic classification and multiple priority queuing
  • Configuration utility compatible with Windows 7, Vista and XP operating systems
  • Plug & Play support

Technical Specs

Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x,
HomePlug AV
Interface 1 x 10/100Mbps Auto-MDIX RJ-45 Port
1 x electrical power socket with noise filtering (5A max. load)
1 x Sync button
Frequency Band 2 - 30 MHz
Modulation OFDM, QAM, QPSK, BPSK, ROBO
Speed Powerline: Up to 200Mbps
LAN: 200Mbps with Full Duplex modem
Utility Compatibility Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
Nodes Connect up to 8 adapters
Encryption 128-bit AES
LED Power, Powerline, Ethernet
Power Source A: 120V (max)
Consumption Active mode: 3.5 Watts (max.)
Standby mode: 0.93 Watts (max.)
Temperature Operating: 0deg. - 40deg. C (32deg. - 104deg. F)
Storage: -10deg. - 55deg. C (14deg. - 131deg. F)
Humidity Max. 95% (Non-Condensing)
Certifications CE, FCC
Dimension (L x W X H) 70x143x83mm / 2.7x5.6x3.3"
Weight 198g / 6.98oz
