About TRENDnet TPL-406E2K

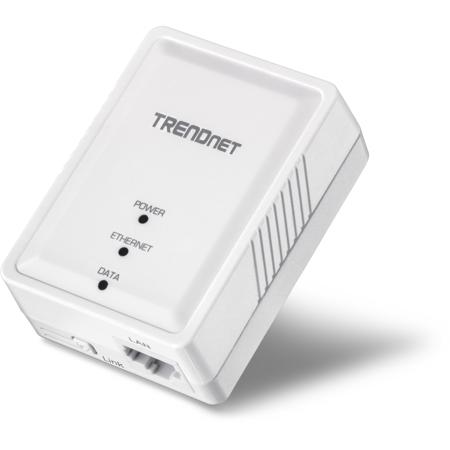

The TRENDnet TPL-406E2K Powerline 500 AV Nano Adapter Kit, uses any electrical outlet to create a secure high speed network. Connect the first adapter to your network and plug the second adapter into any outlet on your electrical system for instant high speed network access. The compact form factor saves space around crowded electrical outlets. This adapter automatically connects to other Powerline AV adapters with no installation required-recommends pressing the 'Sync' button to automatically change default encryption keys.

Use up to 8 adapters to network devices in different rooms without running new cabling. Power Save mode reduces power consumption by up to 80%. Quality of Service (QoS) technology prioritizes video, audio and online gaming. The LED displays convey device status for easy troubleshooting. Advanced 128-bit AES encryption secures your network. This adapter is ideal for use in buildings that interfere with wireless networking signals.

TRENDnet TPL-406E2K Features

  • Includes two TPL-406E adapters
  • Compliant with IEEE1901 and HomePlug AV standards
  • High speed networking over an existing electrical system
  • 1 x 10/100 Mbps Auto-MDIX Ethernet port
  • Adapters automatically connect using an encrypted Powerline signal
  • One-touch Sync button changes encryption keys
  • Three LED indicators: Power (on/off), Powerline Connection: green (best), amber (better), red (good), off (no connection), Ethernet Connection: solid (connection), blinking (transfer activity), off (no connection)
  • Share data intensive files, play games, download music and more at faster data transfer rates
  • Advanced 128-bit AES encryption to ensure total network security
  • Support for IPv6
  • Supports up to 16 IGMP based IPTV streams
  • Power Save mode reduces electrical consumption by up to 80%
  • Neighbor network support for up to 4 overlapping networks
  • Network signal transmits up to 300 meters (984 ft.)
  • Auto QoS support through traffic classification and multiple priority queuing
  • Optional management utility compatible with Windows 7 (32/64-bit), Vista (32/64-bit) and XP (32/64-bit) operating systems

TRENDnet TPL-406E2K Specifications

Standards
IEEE 1901, HomePlug AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Interface
1 x 10/100 Mbps Auto-MDIX RJ-45 port
Power prong
Type B (NEMA 5-15)
Frequency Band
2 - 68 MHz
Modulation
OFDM Symbol Modulation on link synchronization
1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
Protocol
TDMA and CSMA/CA
Speed
Powerline: up to 500 Mbps
Ethernet: up to 200 Mbps (Full Duplex mode)
Utility OS Compatibility
Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
Nodes
Up to 8 (max)
Overlapping Powerline Networks
Up to 4 (per electrical system)
Coverage
Up to 300 m (984 ft.)
Security
128-Bit AES (Advanced Encryption Standard)
LED
Power (PWR)
Powerline (PL) Connection
Best (Green)
Better (Amber)
Good (Red)
No connection (Off)
Ethernet (ETH) Connection
Solid
Blinking
Off
Buttons
Sync (3 sec.) / Reset (20 sec.)
Power Source
100-240V AC, 50-60Hz
Consumption
Active mode: 2.2 Watts (max)
Standby mode: 0.5 Watts (max)
Temperature
Operating: 0deg. - 40deg.C (32deg. - 104deg.F)
Storage: -10deg. - 55deg.C (14deg. - 131deg.F)
Humidity
Max 95% (non-condensing)
Dimension (LxWxH)
70x50x43mm / 2.76x1.97x1.69" per unit
Weight
51g / 1.8oz per unit

TRENDnet TPL-406E2K Reviews

Reviewed by 1 customers


5.0

great product - got it on a deal

By

from bluegrass  -  Casual user

i use it to connect to my silicondust homerun tuner in the attic. as i cannot run a ethernet cable, i use the powerline adapter and it works just fine.
