TRENDnet

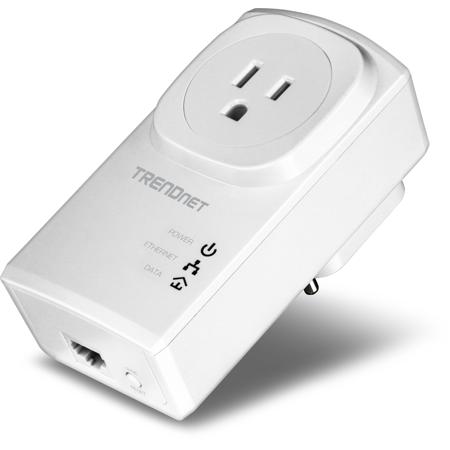

TRENDnet TPL-407E2K Powerline 500 AV Nano Adapter Kit with Built-In Outlet

SKU: TNPL407E2K MFR: TPL-407E2K
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$56.99 $3 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the TRENDnet TPL-407E2K

The Powerline 500 AV Nano Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a secure high speed network. Connect the first adapter to your network and plug the second adapter into an outlet on your electrical system for instant high speed network access. The compact form factor saves space and offers an additional electrical outlet, built into the front of the housing to power computers and other devices. A noise filter maintains optimum connection speeds when devices such as computers, televisions and gaming consoles create electrical background noise.

This adapter automatically connects to other Powerline AV adapters with no installation required-recommends pressing the 'Sync' button to automatically change default encryption keys. Use up to 8 adapters to network devices in different rooms without running new cabling. Power Save mode reduces power consumption by up to 80%. Quality of Service technology prioritizes video, audio and online gaming. The LED displays convey device status for easy troubleshooting. Advanced 128-bit AES encryption secures your network. This adapter is ideal for use in buildings that interfere with wireless networking signals.

TRENDnet TPL-407E2K Includes

  • TRENDnet 2 x TPL-407E Powerline 500 AV Nano Adapter
  • Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • 2 x Network Cables (1.5 m / 5 ft.)
  • TRENDnet 3 Year Limited Warranty

Summary of Customer Reviews

(1)

TRENDnet TPL-407E2K Features

  • Includes two TPL-407E adapters
  • Compliant with IEEE 1901 and HomePlug AV standards
  • High speed networking over an existing electrical system
  • 1 x 10/100 Mbps Auto-MDIX Ethernet port
  • 1 x built-in electrical power socket
  • Adapters automatically connect using an encrypted Powerline signal
  • One-touch Sync button changes encryption keys
  • Three LED indicators: Power: on / off, Powerline Connection: green (best), amber (better), red (good), off (no connection), Ethernet Connection: solid (connection), blinking (activity), off (no connection)
  • Advanced electrical noise filter boosts performance
  • Connect one 500 Mbps Powerline AV Adapter to the Internet and then plug in up to 7 additional 500 Mbps Powerline AV adapters for instant connectivity
  • Share data intensive files, play games, download music and more at faster data transfer rates
  • Advanced 128-bit AES encryption to ensure total network security
  • Support for IPv6
  • Supports up to 16 IGMP based IPTV streams
  • Power Save mode reduces electrical consumption by up to 80%
  • Neighbor network support for up to 4 overlapping networks
  • Network signal transmits up to 300 meters (984 ft.)
  • Auto QoS support through traffic classification and multiple priority queuing
  • Optional management utility compatible with Windows 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit) and XP (32/64-bit) operating systems

TRENDnet TPL-407E2K Specifications

Standards IEEE 1901, HomePlug AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Interface 1 x 10/100 Mbps Auto-MDIX RJ-45 port
1 x built-in electrical power socket with noise filtering
Type B (NEMA 5-15) (15 A max. at 120 V AC)
1 x sync / reset button
Power prong
Type B (NEMA 5-15)
Frequency Band 2 - 68 MHz
Modulation OFDM Symbol Modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
Protocol TDMA and CSMA/CA
Speed Powerline: up to 500 Mbps
Ethernet: Up to 200 Mbps (Full Duplex mode)
Utility OS Compatibility Windows 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Nodes Up to 8 (max.)
Overlapping Powerline Networks Up to 4 (per electrical system)
Coverage Up to 300 m (984 ft.)
Security 128-Bit AES (Advanced Encryption Standard)
LED Power (PWR)
Powerline (PL) Connection
Green (Best)
Amber (Better)
Red (Good)
Off (No connection)
Ethernet (ETH) Connection
Solid (connection)
Blinking (activity)
Off (no connection)
Buttons Sync (3 sec.) / Reset (20 sec.)
Power Source 100-250 V AC, 50-60 Hz
Consumption Active mode: 3 Watts (max.)
Standby mode: 0.5 Watts (max.)
Temperature Operating: 0deg. - 40deg.C (32deg. - 104deg.F)
Storage: -10deg. - 55deg.C (14deg. - 131deg.F)
Humidity Max 95% (non-condensing)
Dimension (LxWxH) 78x55x59mm / 3.07x2.17x2.32"
Weight 102g / 3.6oz
