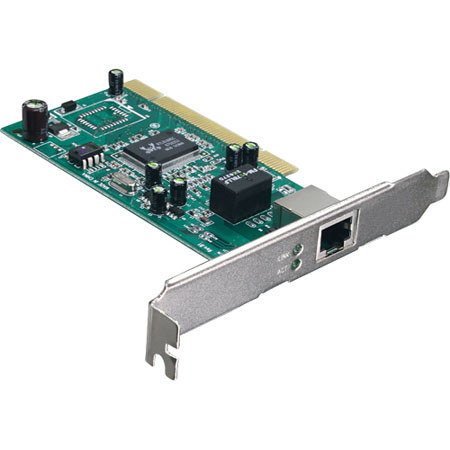

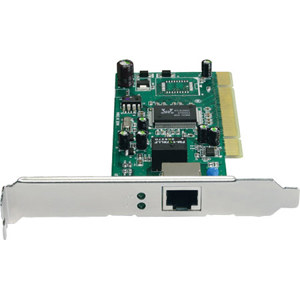

TRENDnet TEG-PCITXR Gigabit PCI Adapter for Windows

See all TRENDnet items
SKU: TNTEGPCITXR MFR: TEGPCITXR
TRENDnet : Picture 1 thumbnail TRENDnet : Picture 2 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

$15.49
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About TRENDnet

The TRENDnet TEG-PCITXR 32-bit 10/100/1000Mbps Copper Gigabit Ethernet adapter is a high-bandwidth network adapter that auto-senses 10/100/1000Mbps connection speed, half/full-duplex modes and MDI-X media type. It includes the latest VLAN tagging to efficiently utilize network bandwidth for maximum data throughput. With its 2000Mbps bandwidth capacity, TEG-PCITXR is ideal for high traffic Power Server and Video-Conferencing Workstation.

TRENDnet Features

  • Support 32-Bit PCI Local Bus Master high-speed operation of Rev. 2.3 specification
  • 1 x 10/100/1000Mbps Auto Negotiation and Auto MDI-X Gigabit Port
  • Built-in FIFO (8K/64K) buffers reduce overhead of memory transfers
  • Supports Full-Duplex Mode Doubles Network Data Rate to 20/200/2000Mbp
  • Supports IEEE 802.1Q VLAN Tagging (Windows 2000 and above only)
  • Supports Wake-on-LAN for Remote Wake up
  • Supports Windows 98SE/ME/2000/XP/Vista Operating Systems
  • Plug and Play

TRENDnet Specifications

Hardware Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit
ANSI/IEEE 802.3 Auto-Negotiation
PCMCIA 2.x
Network Media
Ethernet: UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm STP
Fast Ethernet: UTP Cat. 5, EIA/TIA-568 100-ohm STP
Gigabit: UTP Cat. 5, 5E, 6 EIA/TIA-568 100-ohm STP
Protocol
CSMA/CD
Interface
32-Bit 33/66Mhz PCI Rev 2.1/2.2/2.3
Power Consumption
3.7watts
Diagnostic LED
Link/Activity
Data Rate
Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Gigabit: 2000Mbps(Full Duplex)
Supported OS
Windows 98/ME/NT4.0/2000/XP/2003/Vista
Novel NetWare Server 5.x / 6.x
Linux Kernel 2.4.x / 2.6.x
Temperature
Operating: 0° ~ 40°C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
Operating: 10%~90% (Non-Condensing)
Storage: 5%~90% (Non-Condensing)
Certification
CE, FCC
Dimension
120 x 59 x 15 mm (4.7 x 2.3 x 0.6 inch)
