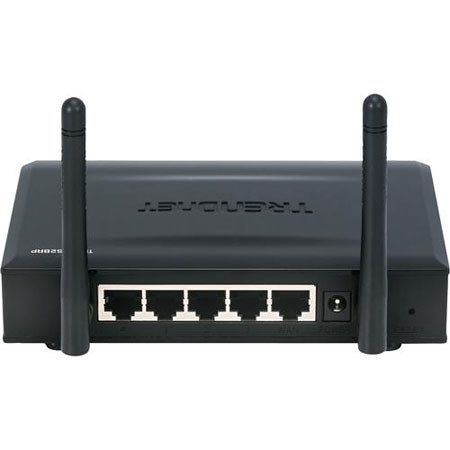

About TRENDnet TEW-652BRP

The TRENDnet Wireless N Home Router delivers the highest level of security with 12x the speed and 4x the range of wireless g products. Quickly install the router and use it with TRENDnet wireless n adapters to receive the full benefits of wireless n speed and coverage. The latest in wireless encryption and a secure firewall provide the ultimate in wired and wireless security. Advanced Multiple Input Multiple Output (MIMO) antenna technology delivers expansive coverage and eliminates dead spots. A quick and intuitive installation process, one touch wireless connection using Wi-Fi Protected Setup and advanced management capabilities make this product well suited for your most demanding home networking needs.

TRENDnet TEW-652BRP Features

  • Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards
  • 4 x 10/100Mbps Auto-MDIX LAN port and 1 x 10/100Mbps WAN port (Internet)
  • Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP & BigPond connection types
  • High-speed data rates up to 300Mbps using an IEEE 802.11n connection
  • 2 fixed external antennas support high speed performance and great coverage with MIMO technology
  • Network Address Translation (NAT) firewall
  • Wi-Fi Protected Setup (WPS) button for simple network connectivity
  • Universal Plug and Play (UPnP) and Application Level Gateway support for Internet applications such as email, FTP, gaming, remote desktop, Net Meeting, telnet and more
  • Provides additional security with Internet Access Control (MAC Address, Domain and IP Filtering)
  • Easy remote management via Web browser
  • Wireless security support for WEP, WPA & WPA2
  • Indoor coverage up to 100 meters (330ft.)
  • Outdoor coverage up to 300 meters (980ft.)
  • Works with Windows, Linux and Mac operating systems

TRENDnet TEW-652BRP Specifications

Hardware Standards
Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX)
Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11e QoS
1 x 10/100Mbps Auto-MDIX port (Internet)
4 x 10/100Mbps Auto-MDIX ports
WPS Button
Enables Wi-Fi Protected Setup (WPS) function
Connection Type
Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP To be supported (Big Pond, Russia PPoE, PPTP and L2TP)
UPnP IGD 1.0 compliant
DMZ host & Virtual Servers
Static or WAN assigned DNS servers; 3 verified services for DDNS
Internet Access Control
MAC Address Filter, Domain/URL Filter, Protocol/IP Filter
5 types of event logging; email report
LED Indicator
Power, LAN1~LAN4, WAN, WLAN, Status
Power Adapter
7.5V DC, 1A external power adapter
Power Consumption
4.5watts (max)
2.412~2.484GHz band
2 x 2dBi fixed dipole antennas
Media Access Protocol
Data Rate
802.11b: 11Mbps, 5.5Mbps, 2Mbps and 1Mbps
802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
802.11n: up to 300Mbps
WEP(HEX/ASCII): 64/128-bit
Output Power
802.11b: 17dBm (typical)
802.11g: 13dBm (typical) 802.11n: 13dBm (typical)
Receiving Sensitivity
802.11b: -85dBm (typical) @ 11Mpbs
802.11g: -68dBm (typical) @ 54Mbps
802.11n: -62dBm (typical) @ 300Mbps
1~ 11 (FCC), 1~13 (ETSI)
Operation: 0°~ 40°C (32°F~ 104°F); Storage: -10°~ 70°C (14°F~158 °F)
Max. 90% (non-condensing)
Dimension (L x W x H)
150 x 130 x 30mm (5.9 x 5.1 x 1.2in)
245g (8.6oz)

TRENDnet TEW-652BRP Reviews

Reviewed by 1 customers

(1 of 1 customers found this review helpful)


Finally Working


from Sharpsville, PA  -  High bandwidth user

The unit is finally working after 2 calls to the support center and a very lucky fix found on the internet. The conections are now fast and stay as long as I am on the web. Nice compact unit and the price is right. The fix is. Make sure you have your lap top power setting set to performance or you will have fits trying to keep your connection when on battery. This little tid bit of information would have been very helpful when setting up.


Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  I tried to install this router with the software disc. It never gave me the install option.I had to take it to the dealer and have them set it up.Now how can I change my settings? My desktop does not even have it on the program I can't do anything except use it.
JERRY H  I'm afraid I cannot be a whole lot of help. I checked the program listing and there is nothing for Trendnet on my computer hard drive. I also had a terrible time installing my unit and had to call Trendnet support at 1-866-845-3673 and talked to a technician who finally got the unit to work properly. When I switched from DSL to Cable I had the same problem but the cable installer was able to get everything back on line for me before he left my house. As far as installing something to your wired computer goes, I think the only thing that is set up is the router itself. It is configured to broadcast the ip signal from your hard wire to any WiFi capable products within the range of your router. It will work even without a computer hooked up after the initial set up is complete. I hope this helps a little and I would strongly suggest you call Trendnet.
