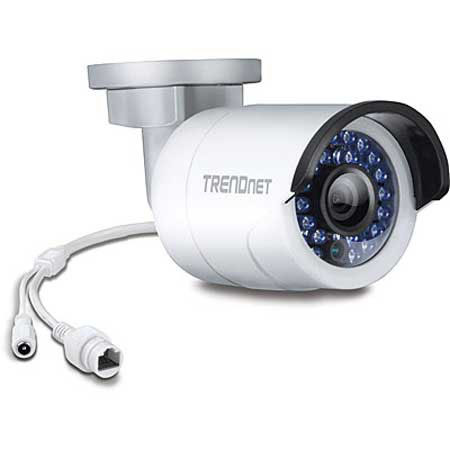

TRENDnet Outdoor 3MP Full HD PoE Day/Night Network Camera
See all TRENDnet items

TRENDnet Outdoor 3MP Full HD PoE Day/Night Network Camera, Up to 100' Night Vision, 2048x1536 H.264 Resolution, 30m IR Illumination Distance

SKU: TNTVIP310PI
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet Outdoor 3MP Full HD PoE Day/Night Network Camera Specifications

  • Lens

    Focal Length: 4.2 mm, F1.6
    Focal depth: 20 cm +Board lens
    Sensor: 1/3" CMOS
    Zoom: user-defined digital zoom window

  • Viewing Angle

    Diagonal: 89 deg.
    Horizontal: 70 deg.
    Vertical: 52 deg.

  • Minimum Illumination

    IR Off: 0.07 lux
    IR On: 0 lux
    30m /98.42' IR illumination distance
    Smart IR

  • Video Codecs/Resolution

    H.264: 2048 x 1536 up to 15 fps (1920 x 1080 up to 30 fps)
    MJPEG: 704 x 480 up to 30 fps

  • Hardware Standard

    IEEE 802.1x
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3af

  • Device Interface

    10/100 Mbps PoE port
    Power port (for not PoE installations)
    Grounding point
    Integrated articulated mounting base
    Reset button

  • Network Protocol

    IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
    DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
    NFS, SAMBA
    HTTP, HTTPS
    PPPoE
    UPnP, RTSP, RTP, RTCP, SSL

  • Management Interface (1)

    Multi-language support: English, French, German, Russian and Spanish
    IP address filter
    QoS traffic prioritization
    Time, date and text overlay
    Image settings: brightness, contrast, saturation, hue, sharpness, smart IR, exposure time (1/3 1/100,000), scan rate, mirror, flip, D-WDR, back light compensation, white balance, digital noise reduction
    Digital Noise Reduction enhances night vision quality
    Recording: to computer, NAS, CIFS/SAMBA share or through software

  • Management Interface (2)

    Scheduled recording: continuous and motion detection
    Tamper proof function: email notification if the viewing field darkens suddenly
    Video playback interface: playback recorded video from remote storage
    Snapshot: real time snapshot, motion detection with schedule, tamper-proof with schedule
    Supported dynamic DNS services: Dyn.com, NO-IP.com, HiDDNS and IPServer
    Management Setting: maximum 32 user accounts
    Supports remote management

  • Privacy masks

    Define custom privacy mask areas

  • Motion detection field

    Define custom motion detection areas, motion sensitivity and dynamic motion analysis

  • Alert messages

    storage full, storage error and illegal login

  • TRENDnetView Pro Software

    Supports up to 32 cameras
    Multiple language support
    Set recording options (motion detection, schedule, event trigger)
    Search and playback
    Custom viewing modes and options
    Compatibility: Windows 8, 7, Vista, XP, Windows Server 2003, 2008

  • Mobile Application

    Free Apple and Android app
    View your camera on your mobile device
    Take snapshots Zoom

  • Input Power

    PoE (802.3af)

  • Power Consumption

    5W (Max.)

  • Operating Temperature

    -25 to 60 deg. C / -13 to 140 deg. F

  • Humidity

    Maximum 90% non-condensing

  • Certifications

    CE
    FCC
    UL 60950

  • Compliance

    REACH
    RoHS
    WEEE

  • Weatherproof Rating

    IP66

  • Dimensions

    2.4 x 3 x 5.4 / 60.96 x 76.2 x 137.16mm

  • Weight

    13.2oz / 374.21g

  • UPC Code

    710931110364

About TRENDnet Outdoor 3MP Full HD PoE Day/Night Network Camera

The TRENDnet Outdoor 3MP Full HD PoE Day/Night Network Camera provides powerful 3 megapixel night vision in complete darkness for up to 30 meters (100 ft.). This ultra-compact vandal resistant camera is outdoor ready with an IP66 weather rated housing. It comes with a free Apple and Android mobile app and complimentary pro-grade software to manage up to 32 TRENDnet cameras.

PoE
Save installation costs with Power over Ethernet (PoE).

Outdoor Ready
Outdoor IP66 weather rated.

Sun Visor
Sun visor increases image quality throughout the day.

Compact
Ultra-compact housing.

3 Megapixel
Record 2048 x 1538 pixel video at 15 fps in H.264 compression.

Night Vision
Night vision up to 30 meters (100 ft.) in complete darkness.

Smart IR
Dynamic IR adjustment optimizes night visibility.

Digital Zoom
Digitally zoom anywhere within the viewing field.

IPv6
IPv6 support.

Advanced Playback
Advanced in-camera archived video review functionality.

D-WDR
Digital Wide Dynamic Range improves video quality in high contrast lighting environments.

Storage
Samba video support with notification if storage drive is full.

Free Apps
See live video on a mobile device with free Apple and Android apps.

Complimentary Software
Complimentary pro-grade software to manage up to 32 TRENDnet cameras.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet Outdoor 3MP Full HD PoE Day/Night Network Camera
  • CD-ROM (Utility Software & User's Guide)
  • Multi-Language Quick Installation Guide
  • Camera Mounting Hardware
  • TRENDnet 3 Year Limited Warranty
