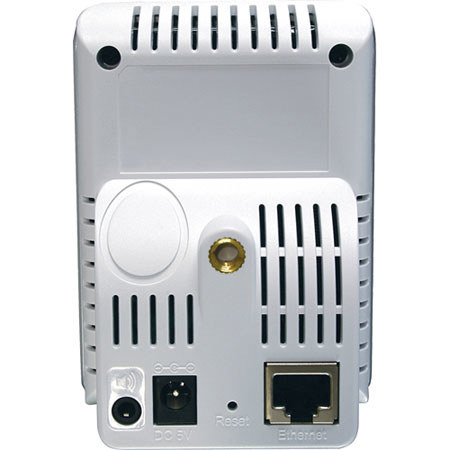

TRENDnet TV-IP312W SecurView 2-Way Audio Wireless Day/Night Internet Camera Server

See all TRENDnet items
SKU: TNTVIP312W MFR: TVIP312W
TRENDnet TV-IP312W: Picture 1 thumbnail TRENDnet TV-IP312W: Picture 2 thumbnail

Our Price

$197.13
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About TRENDnet TV-IP312W

The TRENDnet Wireless 2-Way Audio Day/Night Internet Camera transmits real-time high quality video and audio over the Internet. See, hear and talk to people, in your camera's viewing area during the day or in the dark, from any Internet connection. Complimentary SecurView camera management software allows you to monitor what you value most at home or at work. The camera provides crystal clear MPEG4 video streams over a secure encrypted internet connection.

The Infrared lens provides night monitoring for low light environment. A built-in microphone and optional speakers accommodate 2-way audio communication. Advanced intuitive software includes motion detection recording, email alerts, scheduled recordings and progressive search options. This cameras brilliant image quality, USB flash support, day and night capabilities and 2-way audio make it ideal for home, small office and business use.

TRENDnet TV-IP312W Features

  • Compatible with wireless g and b devices.
  • Advanced encryption modes include WEP, WPA-PSK and WPA2-PSK
  • Built-in USB port allows you to store still image directly onto a USB flash or hard drive**
  • Infrared lens enables day and night version (night visibility up to 5 meters)
  • Supports TCP/IP networking, SMTP Email, HTTP, Samba and other Internet protocols
  • High quality MPEG-4 and MJPEG video recording with up to 30 frames per second
  • Supports 3GPP live video viewing via 3G mobile phone
  • Hear and talk to people in your camera's viewing area through your computer
  • Record streaming video to your computer and Network Storage
  • Supports still image snapshot to FTP, Email and Flash drive
  • Motion detection with Email notification
  • Supports two adjustable motion detection windows with just-in-time snapshot
  • Supports time stamp overlay
  • Quick Universal Plug and Play installation
  • Free SecurView software: view and record up to 16 cameras simultaneously

TRENDnet TV-IP312W Specifications

Image Sensor
1/4" Color CMOS Sensor
Image Sensor Resolution
640 x 480 Pixel
Fixed Lens
f: 4.6mm, F: 2.8 (IR Lens)
Viewing Angle
60 Degree
Minimum Illumination
0.5Lux @ F2.0
Microphone Input
Internal Omni-Directional
Sensitivity: -48dB + 3dB
Response Frequency:
50 ~ 16000Hz
Audio Output
3.5mm Speaker Output Jack
Audio Format
PCM/AMR (Mono)
Video Format
MPEG4(Simple Profile), MJPEG, 3GPP
Image Frame Rate
30fps @VGA, QVGA, QQVGA
Frame Rate Setting
1 ~ 30fps
Compression Ration Setting
5 Levels
Audio Resolution
640 x 480, 320 x 240, 160 x 120
Exposure Control
Automatic
White Balance
Automatic
Gain Control
Automatic
Image Setting
Adjustable Brightness, Contrast, Saturation
Flip Images
Vertical/Horizontal
Light Frequency
50Hz, 60Hz or Outdoor
LAN
10/100Mbps Auto MDIX
Protocol
HTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP, RTP, RTSP, RTCP
Hardware Specifications
CPU: ARM9 base
RAM: 32Mbyte SDRM
ROM: 8Mbyte Nor Flash
OS: Linux
Web Configuration Requirement
CPU: Pentium III 350MHz or above
Memory Size: 128MB or above
Resolution: 800 x 600 or above
Browser: Internet Explorer 6.0 or above
Supported OS: Windows 2000/XP/Vista/Windows 7
SecurView Software Requirement
CPU: Pentium 4 1GHz or above
Memory Size: 512MB or above
Resolution: 1024 X 768 or above
Supported OS: Windows 2000/XP/Vista/Windows 7
Wireless Standard
IEEE 802.11b/g
Wireless Security
64/128-bit WEP, WPA-PSK, WPA2-PSK
Wireless Antenna
2dBi Detachable Reverse SMA Connector
USB Port
USB 1.1 (Type 1)
Up to 500mA Power Device with FAT16/32 Format
IR Sensor (minimum lux)
Normal mode: 2~2.5 lux
Night mode on: 0.5 lux
IR on: 0 lux
Light sensor activates the IR LED on/off: 5~10 lux
Power
5VDC, 2.5A External Power Adapter
Power Consumption
8 Watts (Max)
LEDs
Power (Orange), Link (Green)
LED Enable/Disable Support
Temperature
Operation: 0°C ~ 45°C (32°F ~ 113°F)
Storage : -10°C ~ 60°C (14°F ~ 140°F)
Dimension
70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)
Weight
Camera: 170g (6 oz.)
Stand: 135g (4.76oz.)
