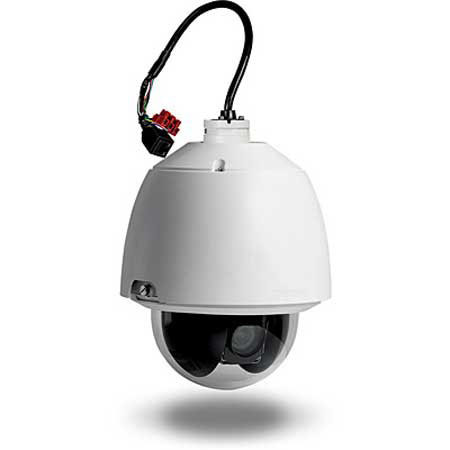

TRENDnet Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera
See all TRENDnet items

TRENDnet Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera, 20x Optical Zoom, 1280x960 Resolution, Endless 360deg. Pan/Tilt/Zoom

SKU: TNTVIP450P
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera Specifications

  • Lens

    Focal length: 4.7 - 94 mm
    Focal depth: 10 - 1000 mm (Wide-Tele)
    Aperture: F1.4 - 3.5 (Wide-Tele)
    Sensor: 1/3" Progressive Scan CMOS
    Focus: auto/semi-auto/manual
    Iris control: auto and manual

  • Viewing Angle

    Horizontal: 54½

  • Zoom

    Combined zoom factor: 320x
    Optical: 20x
    Digital: 16x
    Speed: 3s

  • Pan/Tilt

    Pan: endless 360 deg.
    Tilt: -5 to 90 deg. (auto-flip)
    Pan speed: (manual) 0.1 - 250 deg. /s, (preset) 300 deg. /s
    Tilt speed: (manual) 0.1 - 150 deg. /s, (preset) 200 deg. /s
    Number of presets: 256
    Patrol: 8 patrols, up to 32 presets per patrol
    Scheduled PTZ: create detailed weekly schedule with the following activity options: auto scan, frame scan, random scan, patrol, pattern, preset, panorama scan, tilt scan, dome reboot and dome adjust

  • Minimum Illumination

    Color: 0.05 lux
    B/W: 0.01 lux

  • Video

    D-WDR: 128x
    Shutter speed: 1 - 1/10,000s
    H.264 resolution: 1280 x 960 up to 30 fps
    MJPEG resolution: 704 x 480 up to 30 fps

  • Audio

    2-way audio
    External microphone line in / speaker line out

  • Hardware Standards

    IEEE 802.1x
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3at

  • Device Interface

    10/100 Mbps PoE+ port
    Power connector (for non-PoE installation)
    Audio wires (in/out/ground)Micro SD card slot
    Suspension cable secures camera during installation

  • Housing

    Weather rating: IP66

  • Network Protocol

    IPv4, IPv6, UDP, TCP, IGMP, ICMP, ONVIF v2.2
    DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
    CIFS/SMB, NFS
    HTTP, HTTPS
    PPPoE
    UPnP, RTSP, RTP

  • Management Interface (1)

    Multi-language support: English, French, German, Russian and Spanish
    IP address filter
    QoS traffic prioritization
    Time, date and text overlay
    Image settings: brightness, contrast, saturation, hue, sharpness, smart IR, exposure time (1/3 1/100,000), scan rate, mirror, flip, D-WDR, back light compensation, white balance, digital noise reduction, noise reduction level, zoom limit, HLC
    Digital Noise Reduction enhances night vision quality

  • Management Interface (2)

    Scheduled recording: continuous and motion detection
    Tamper proof function: email notification if the viewing field darkens suddenly
    Video playback interface: playback recorded video from remote storage
    Snapshot: real time snapshot, motion detection with schedule, tamper-proof with schedule
    Supported dynamic DNS services: Dyn.com, NO-IP.com, HiDDNS and IPServer
    Management Setting: maximum 32 user accounts
    Supports remote management

  • Management Interface (3)

    Storage logs: Alarm, Exception, Operation and others

  • Privacy masks

    Define custom privacy mask areas

  • Motion detection field

    Define custom motion detection areas, motion sensitivity and dynamic motion analysis

  • Alert messages

    Storage full, storage error and illegal login

  • TRENDnetView Pro Software

    Supports up to 32 cameras
    Multiple language support
    Set recording options (motion detection, schedule, event trigger)
    Search and playback
    Custom viewing modes and options
    Compatibility: Windows 8, 7, Vista, XP, Windows Server 2003, 2008

  • Mobile Application

    Free Apple and Android app
    View your camera on your mobile device
    Take snapshots Zoom
    Pan/ Tilt / Zoom

  • Input Power

    100 - 240V AC, 50/60 Hz, 2A

  • Output Power

    56V DC, 30W (PoE+)

  • Power Consumption

    22 Watts/14 Watts max. (heater on/off)

  • Required Mounting Accessories

    Ceiling mount: TV-HC400
    Pole mount: TV-HP400
    Wall mount: TV-HW400
    Corner mount: TV-HN400

  • Operating Temperature

    -30 to 65 deg. C / -22 to 149 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    8.7 x 12" / 220.98 x 304.8mm

  • Weight

    7lbs / 3.17kg

  • UPC Code

    710931110449

0 Accessories for TRENDnet Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera, 20x Optical Zoom, 1280x960 Resolution, Endless 360deg. Pan/Tilt/Zoom

About TRENDnet Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera

The TRENDnet Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera offers powerful 20x optical zoom, low light sensor, an IP66 weather rating and endless 360 degree PTZ functionality. Record 1.3 Megapixel HD video (1280 x 960) at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps. A separate mounting bracket is required install with TRENDnet's TV-HC400, TV-HW400, TV-HP400 or TV-HN400.

Powerful Zoom
20x optical zoom and 16x digital zoom combine for a total 320x zoom factor with autofocus

Low Light Vision
Provides visibility in extremely low light conditions (0.05 Lux rated).

Continuous PTZ
Endless 360deg. variable speed pan tilt zoom and user defined 3D zoom within the graphical user interface

Outdoor Rated
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 65 deg.C (-22 149 deg.F).

Additional Mounting Bracket Required
Separate mounting bracket required install with TRENDnet's TV-HC400, TV-HW400, TV-HP400 or TV-HN400

1.3 Megapixel HD
Record 1280 x 960 at 30 fps in the space saving H.264 compression format.

Auto Patrol
Choose pre-defined or program up to eight auto patrol sequences with varying zoom levels.

Storage
Record video to a Samba client or to a Micro SD card.

Tamper Detection
Receive tamper detection snapshots via email, ftp or save to Samba client or Micro SD card.

D-WDR
Improved image quality and autofocus in high contrast lighting environments with Digital Wide Dynamic Range technology.

Motion Detection
Create motion detection windows with separate sensitivity settings and event triggers.

Recording Schedule
Define a weekly recording schedule.

IPv6
IPv6 support.

ONVIF
ONVIF compliant.

Complimentary Software
Complimentary pro-grade software to manage up to 32 TRENDnet cameras.

Complimentary Apps
Live video to a mobile device with free Apple and Android apps.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera
  • TRENDnet 3 Year Limited Warranty
