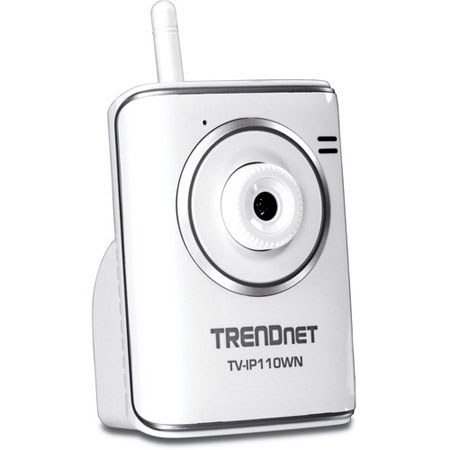

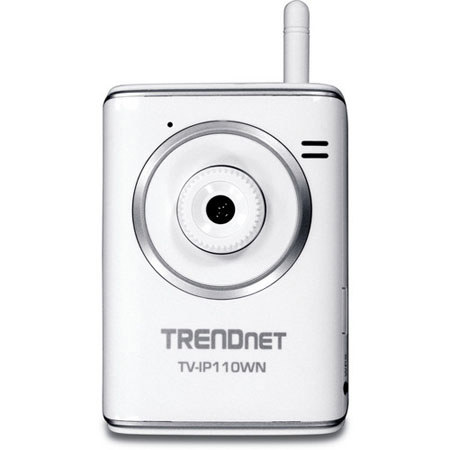

TRENDnet TV-IP110WN SecurView Wireless N Internet Camera

See all TRENDnet items
SKU: TNVIP10WN MFR: TV-IP110WN
TRENDnet TV-IP110WN: Picture 1 thumbnail TRENDnet TV-IP110WN: Picture 2 thumbnail TRENDnet TV-IP110WN: Picture 3 thumbnail TRENDnet TV-IP110WN: Picture 4 thumbnail TRENDnet TV-IP110WN: Picture 5 thumbnail
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify Me

Our Price

$112.10
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About TRENDnet TV-IP110WN

The TRENDnet TV-IP110WN SecurView Wireless N Internet Camera transmits real-time high quality video over the Internet. Manage your camera from any Internet connection. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS).

Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include motion detection recording, email alerts, scheduled recording sessions, MJPEG image compression and digital zoom. A wall/ceiling mounting kit is included and the off-white camera housing blends into most environments.

TRENDnet TV-IP110WN Features

  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
  • One touch WPS connection button
  • Power and activity LED indicators (can be disabled)
  • 1x 10/100Mbps Fast Ethernet port
  • 1 x detachable antenna
  • 3x digital zoom
  • Dynamic DNS support
  • High quality MJPEG video recording
  • Support up to 640x480 pixels resolution at up to 30 frames per second
  • Full screen video mode
  • Images controls: Brightness, contrast, saturation and mirror (horizontally/vertical)
  • Supports TCP/IP networking, SMTP Email, HTTP and other Internet protocols
  • Record streaming video to your computer
  • Supports 64/128-bit WEP, WPA-PSK and WPA2-PSK
  • Two adjustable motion detection windows with just-in-time snapshot, triggered video recording and email alerts
  • Included mounting hardware
  • Quick Universal Plug and Play (UPnP) installation
  • Complimentary SecurView Pro software: manage up of up to 32 cameras

TRENDnet TV-IP110WN Specifications

Camera Sensor
1/4" color CMOS sensor
Resolution: 640 x 480 pixels
Board Lens
Focal Length: 4.6mm
Aperture (F/No): F2.6
Minimum illumination: 0.5 Lux
Diagonal viewing angle: 60 degrees
Camera Image & Video
Compression: MJPEG
Exposure/white balance/Gain Control: automatic>
Resolution: up to 30ps for VGA (640x480), 30fps for QVGA (320x240), 30fps for QQVGA (160x120)
Network
IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
LED
Power, Link
Reset Button
Restore to factory default
Power Consumption
6 Watts
Power
5V, 2.5A external power adapter
Temperature
Operating: 0deg.C - 45deg.C (32deg.F - 113deg.F)
Storage: -15deg.C - 60deg.C (5deg.F - 140deg.F)
Humidity
Max. 85% (non-condensing)
Management Interface
Internet Explorer 6.0 or above
Requirement: To Run SecurView Pro
Windows 7(32/64-bit), Vista(32/64-bit), XP(32/64-bit)
Requirement: SecurView Pro
Channel: supports up to 32 cameras
Record/Playback/Motion Detection
Network Protocols
TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE and UPnP
Wireless Standard
Based on IEEE 802.11n technology
IEEE 802.11g/b compliant
Wireless Frequency
2.4 - 2.4835GHz
Wireless Antenna
1 x 2dBi dipole antenna (Reverse-SMA connector)
Wireless Data Rate (auto fallback)
802.11n: up to 150Mbps
802.11b: up to 11Mbps
802.11g: up to 54Mbps
Wireless Security
64/128-bit WEP, WPA/WPA2-PSK
Wireless Output Power
802.11n: 15 + 1 dBm
802.11b: 15 + 1 dBm
802.11g: 18 + 1 dBm
Wireless Receiving Sensitivity
802.11n HT20: -67dBm
802.11n HT40: -64dBm
802.11g: -70dBm
802.11b: -87dBm
Wireless Channel
1-11 (FCC), 1-13 (ETSI)
Management Remote
Remote management supported
Management Backup / Restore
Save/retrieve configuration files
Image Settings
Brightness, contrast, saturation, flip, mirror (horizontal/vertical)
Video Settings
Encoding type: MJPEG
Resolution: 640 x 480, 320 x 240, 160 x 120
Frame rate: 1- 30 fps
Compression: 5 levels
Recording Settings
Recording type: continuous, schedule or motion detection with software
Port Settings
HTTP port: 80 (default)
Digital Zoom Settings
3x
Dynamic DNS Settings
Yes
Time Settings
Synchronize with NTP server or set time/date manually
SMTP Settings
SMTP mail supported up to 2 accounts
System log Settings
100 items
Dimensions
70.00x100.00x57.00mm (2.75x3.93x2.24")
Weight
Camera: 155g (5.50oz)
Stand: 135g (4.80oz)
Mfr #
TV-IP110WN
SKU
TNVIP10WN
