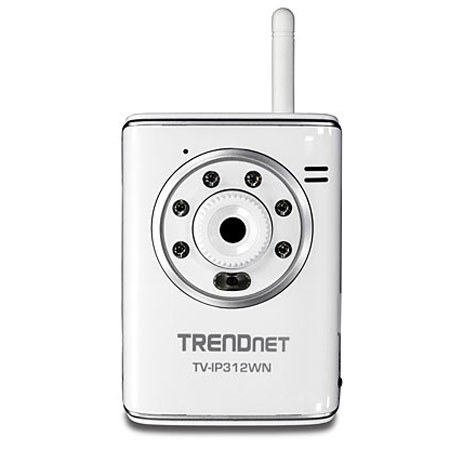

TRENDnet TV-IP312WN SecurView Wireless N Day/Night Internet Camera

SKU: TNVIP312WN MFR: TV-IP312WN
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$249.99
Free Shipping
Qty:

Add to Wishlist

About the TRENDnet TV-IP312WN

The TRENDnet TV-IP312WN SecurView Wireless N Day/Night Internet Camera transmits high quality video and audio over the Internet. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS). Infrared bulbs provide night vision for distances of up to five meters (16 feet) in complete darkness.

A built-in microphone and optional speakers accommodate 2-way audio communications. Manage up to 32 SecurView cameras with the included complimentary camera management software. Advanced features include motion detection recording, email alerts, scheduled recording sessions, MPEG-4 / MJPEG image compression and digital zoom. A wall/ceiling mounting kit is included and the off-white camera housing blends into most environments.

TRENDnet TV-IP312WN Includes

  • TRENDnet TV-IP312WN SecurView Wireless N Day/Night Internet Camera
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power Adapter (5V DC, 2.5 A)
  • Network Cable (1.8 m/5.9')
  • Mounting Stand
  • TRENDnet 3 Year Limited Warranty

TRENDnet TV-IP312WN Features

  • Wi-Fi compliant with IEEE 802.11b/g/n networks
  • 3 x digital zoom
  • 1 x 10/100Mbps Fast Ethernet port
  • 1 x Wi-Fi Protected Setup button
  • 1 x USB port to store still images to a USB flash drive
  • High quality MPEG-4 and MJPEG video recording with up to 30 frames per second
  • Resolution up to 640x480 pixels
  • Power and activity LED indicators (can be disabled)
  • Infrared night vision for up to 5 meters (16 feet)
  • Dynamic DNS support
  • Image control: brightness, contrast, saturation and mirror (horizontally/vertical)
  • Supports TCP/IP networking, SMTP Email, HTTP, Samba and other Internet protocols
  • Record streaming video to your computer and Network Storage Server
  • Motion detection triggered email alerts and image upload via FTP
  • Stream Internet camera video to a 3GPP compatible mobile device
  • Supports 64/128-bit WEP and WPA/WPA2-PSK wireless encryption
  • Hear and talk to people in your camera's viewing area through your computer
  • Two adjustable motion detection windows with just-in-time snapshot
  • Quick Universal Plug and Play installation
  • Complimentary SecurView Pro software: manage up of up to 32 camera

TRENDnet TV-IP312WN Specifications

Camera Sensor 1/4" color CMOS sensor
Resolution: 640 x 480 pixels
Board Lens
Focal Length: 4.5mm
Aperture (F/No): F2.8
IR LED with light sensor control
Minimum illumination: 0 Lux
Diagonal viewing angle: 60 degree
Camera Image & Video Compression: MPEG-4/MJPEG dual streaming
Exposure/white balance/gain control: automatic
Resolution: up to 30fps for VGA (640x480), 30fps for QVGA (320x240), 30fps for QQVGA (160x120)
Camera Audio Audio in: internal omni-directional microphone
Sensitivity: -48dB +/- 3dB
Frequency response: 50 - 16000Hz
Audio out: external output to active speaker (mono)
Echo Cancellation: hardware voice processor
Audio codec: PCM/AMR
Network IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
LED Power, Link
IR wavelength 850nm
USB Port Type A USB 1.1 host port
Reset Button Restore to factory default
WPS Button Push button for Wi-Fi Protected Setup
Power Consumption 8 watts max.
Power 5 V, 2.5 A external power adapter
Temperature Operating: 0deg.C - 45deg.C (32deg.F - 113deg.F)
Storage: -15deg.C - 60deg.C (5deg.F - 140deg.F)
Humidity Max. 90% (non-condensing)
Management Interface Internet Explorer 6.0 or above
Requirement: To Run SecurView Pro Windows 7 (32/64 bit), Vista (32/64 bit), XP (32/64 bit)
Requirement: SecurView Pro Channel: supports up to 32 cameras
Record/Playback/Motion Detection
Network Protocols TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP and RTCP
Wireless Standard Based on IEEE 802.11n technology
IEEE 802.11g/b compliant
Wireless Frequency 2.4 - 2.4835GHz
Wireless Antenna 1 x 2dBi dipole antenna (Reverse-SMA connector)
Wireless Data Rate (auto fallback) 802.11n: up to 150Mbps
802.11g: up to 54Mbps
802.11b: up to 11Mbps
Wireless Security 64/128-bit WEP, WPA/WPA2-PSK
Wireless Output Power 802.11n: 15 + 1 dBm
802.11b: 15 + 1 dBm
802.11g: 18 + 1 dBm
Wireless Receiving Sensitivity 802.11n HT20: -67dBm
802.11n HT40: -64dBm
802.11g: -70dBm
802.11b: -87dBm
Wireless Channel 1-11 (FCC), 1-13 (ETSI)
Management Remote Remote management supported
Management Backup / Restore Save/retrieve configuration files
Recording Settings Recording type: continuous, schedule or motion detection with software
Multi-Profile Settings 3 profiles simultaneously
Port Settings HTTP port: 80 (default)
Digital Zoom Settings 3x
Dynamic DNS Settings Yes
Time Settings Synchronize with NTP server or set time/date manually
SMTP Settings SMTP mail supported up to 2 accounts with software
System Log Settings 100 entries (max.)
Dimensions 70.00x100.00x57.00mm (2.75x3.94x2.24")
Weight 155g (5.40oz)
