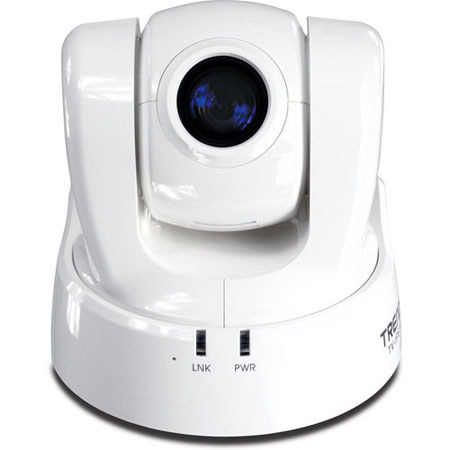

TRENDnet TV-IP612P PoE PTZ Internet Camera

SKU: TNVIP612P MFR: TV-IP612P

Our Price

$659.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • IEEE 802.3af PoE compliant device
  • 1 x 10/100Mbps PoE Auto-MDIX RJ-45 port
  • Power port for non-PoE installations
  • Micro SD card slot
  • Built-in mic, jack for 3rd party mic & speaker
  • Reset button
  • Auto focus zoom board lens
  • 10x optical zoom
TRENDnet TV-IP612P: Picture 1 regular $659.99

About TRENDnet TV-IP612P

The TRENDnet TV-IP612P PoE PTZ Internet Camera provides security over a large area. 10x optical zoom combined with 16x digital zoom and auto focus technology capture clear images of distant objects.

No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology. Pan the camera side-to-side a remarkable 330 degrees and tilt up-and-down 115 degrees from any Internet connection. Manage up to four video profiles to record H.264 quality video while at the same time streaming content to a compatible 3GPP mobile phone.

The TV-IP612P streams H.264 video with a resolution of up to 704 x 480 at 30 frames per second. Manage up to 32 ProView cameras with the included complimentary camera management software. Advanced features include motion detection recording, email alerts, scheduled recording sessions, H.264 and MPEG-4 compression, 2-way audio, pan/tilt auto patrol, input/output ports, optical and digital zoom and a built-in Micro SD card slot to store video directly to a memory card. A wall/ceiling mounting kit is included and the off-white camera housing blends into most environments. This camera's brilliant image quality, pan and tilt functionality and recording capabilities make it ideal for home, small office and business use.

TRENDnet TV-IP612P Features

  • IEEE 802.3af PoE compliant device
  • 1 x 10/100Mbps PoE Auto-MDIX RJ-45 port
  • Power port for non-PoE installations
  • Power and activity LED indicators (can be disabled)
  • Micro SD card slot
  • 2-way audio: built-in microphone, jack for additional 3rd party microphone and speaker
  • Input/Output ports to network alarm systems and other devices
  • Reset button
  • Auto focus zoom board lens
  • 10x optical zoom
  • 16x digital zoom
  • Pan left or right 165deg. for a total of 330deg
  • Tilt the camera up 84deg. and down 31deg. for a total of 115deg
  • Stream and record up to 4 different video profiles simultaneously
  • Stream Internet camera video to a 3GPP compatible wireless device
  • Dynamic DNS support
  • High quality H.264, MPEG-4 and MJPEG video recording
  • Supports up to 704 x 480 pixel resolution at up to 30 frames per second
  • Image controls: Brightness, contrast, auto gain control, noise reduction, saturation, sharpness, back light control, hue, frequency, flip image vertically, mirror image horizontally and Black and White mode
  • Automatically adjusts between day and night modes or schedule day and night mode times
  • Record video to a Samba network drive or a Micro SD Card
  • Define a recording schedule, continuous recording, or event based recording
  • Individually manage recording space and recycle options for each video profile
  • Event based recording: program the device to record for up to 15 seconds before and after a motion detection or Input port signal event
  • Create motion detection fields of any shape over the viewing area

TRENDnet TV-IP612P Specifications

Sensor
1/4" CCD Sensor
Focal Length
f(wide) 3.8mm to f(tele) 38.0mm
F/No
F(wide)=1.8, F(tele) = 2.8
LENS
Auto focus zoom lens with IR cut filter
Zoom Ratio
10x optical zoom plus 16x digital zoom
Color mode
Full color or black and white mode
Day & Night image modes
Automatic or scheduled transition between modes Minimum illumination: Color: 0.7 lux at F1.8 B/W: 0.02 lux at F1.8
View: Wide Angle
Horizontal: 51.3 degree
Vertical: 39.3 degree
Max. Zoom Angle
Horizontal: 5.6degree
Vertical: 7.3 degree
Audio
Built-in omni-directional microphone
Sensitivity: -40dB +/- 3dB (5 meters max.)
Frequency: 100-20000Hz
S/N: >60dB
Codec: ARM/PCM
External speaker output (speaker sold separately)
Two-way audio with echo canceling
Pan & Tilt
Pan: -165deg. - +165deg.
Tilt: up 84deg. and down 31deg.
Preset positions: 20
Auto Patrol and manual controls
Image & Video
Compression: simultaneous H.264 / MPEG-4 / MJPEG
Profiles: up to 4 profiles simultaneously
IRIS Control /white balance control: automatic
Resolution: 704 x 480, 352 x 240 and 176 x 112 at 30fps (NTSC)
Resolution: 704 x 576, 352 x 288 and 176 x 144 at 25fps (PAL)
Built-in ICR
GPIO
Input: 1 set
Output: 1 set
Micro SD slot
Micro Secure Digital card (up to 16G)
Network
IEEE 802.3u 10/100Mbps Fast Ethernet
IEEE 802.3af PoE
LED
Power, Link/Act
Reset Button
Reset to factory default
Power Consumption
12 Watts (max.)
Power
12V, 2A external power adapter (for non-PoE installations)
Temperature
Operating: 0deg.C - 45deg.C (32deg.F - 113deg.F)
Storage: -15deg.C - 60deg.C (5deg.F - 140deg.F)
Humidity
Max. 90% (non-condensing)
Certifications
CE, FCC
To View Camera
Internet Explorer 7.0 or above, Firefox 3.5 or above, Safari 4.0 or above
To Run Software
Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
IPView Pro 2.0
Channel: supports up to 32 cameras
Record/Playback/Motion Detection/Audio
Network Protocols
IPv4, ARP, TCP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP
Samba Client
PPPoE
UPnP
RTP (Real Time Protocol)
RTCP (Real Time Control Protocol)
RTSP (Real Time Streaming Protocol)
Accounts
Up to 20 user accounts
Remote Login
Remote management supported
Backup / Restore
Save/retrieve configuration files
Log
System log up to 1023 entries
Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical), black & white, day, night, schedule mode
Video Setting
Encoding Type: MJPEG / MPEG-4 /H.264
Resolution: 704 x 480, 352 x 240, 176 x112 (NTSC)
Resolution: 704 x 576, 352 x 288, 176 x144 (PAL)
Max. frame rate: 30 fps (NTSC) / 25fps (PAL)
Recording
Resolution: Define individual resolution for up to 4 profiles
Required storage: 32MB (minimum per profile)
Recording type: event based (motion detection and digital input trigger), continuous and scheduled
Snapshot
Trigger event: motion detection or digital input signal
Action: send alert email and/or upload to FTP
Real time snapshot
Port Settings
HTTP port: 80 (default)
RTSP port: 554 (default)
Dynamic DNS
Yes
Time
Synchronize with NTP server or set time/date manually
Dimensions
125x130x125mm / 4.92x5.11x4.92"
Weight
Camera: 770g (27.16oz)
Mfr #
TV-IP612P
SKU
TNVIP612P
