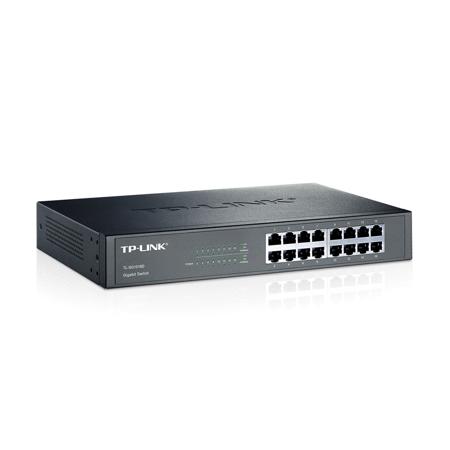

TP-Link 16-Port 10/100/1000M Gigabit Desktop/Rackmount Switch, 32Gbps Switch Capacity

See all TP-Link items
SKU: TPLSG1016D MFR: TL-SG1016D
TP-Link : Picture 1 thumbnail TP-Link : Picture 2 thumbnail

Our Price

$84.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About TP-Link

The TP-Link TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40% of the power consumption, making it an eco-friendly solution for your business network.

TP-Link Features

  • Innovative energy-efficient technology saves power up to 40%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 32Gbps Switching Capacity
  • 10K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Store and forward Switching scheme
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
  • Plug and Play design simplifies installation

TP-Link Specifications

Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Network Ports
16-10/100/1000Mbps RJ45 ports
Auto Negotiation
Yes
Auto MDI/MDIX
Yes
Systems
Windows 2000/XP/Vista/7
Linux
MAC OS
Forwarding Mode
Store and Forward
Switch Capacity
32 Gbps
MAC Address Table
8 K
Jumbo Frame
10 KB
Fanless
Yes
Flow Control
Yes
Power Saving
Up to 40%
LED
Power, Link/Act, 1000Mbps
Operating Temperature
0 - 40Deg.C (32 - 104Deg.F)
Storage Temperature
-40 - 70Deg.C (-40 - 158Deg.F)
Operating Humidity
10% - 90% non-condensing
Storage Humidity
5% - 90% non-condensing
External Power Supply
100-240VAC, 50/60Hz
Certification
FCC, CE, RoHs
Dimensions ( W x D x H )
11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  1. Is this model come with a rackmounting kit? 2. What is/are the main difference(s) in a functional-wise between TL-SG1016 and TL-SG1016D?
Andrew R  Unfortunately no, this unit does not include a rack mounting kit. The only difference that I can see are that the TL-SG1016 is in a rack mountable case (there may be other slight differences).
