TP-Link

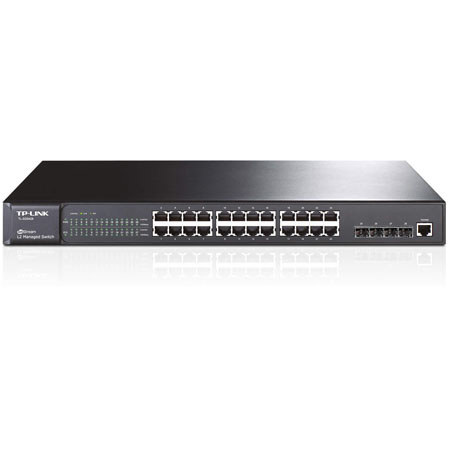

TP-Link JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

SKU: TPLSG5428 MFR: TL-SG5428
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$399.99
Free Shipping
Qty:

Add to Wishlist

About this item

Designed for workgroups and departments, TP-Link TL-SG5428 provides full set of layer 2 management features. It delivers maximum throughput where you need it - to high-performance workgroups at the edge of the network, or as a backbone for Gigabit Ethernet switches and high-speed servers in small networks. Moreover, TL-SG5428 switch also comes equipped with 4 SFP slots, giving you greater network flexibility.

This TP-Link L2 managed switch has robust security and management features. An advanced Access Control List (ACL, L2 to L4) and the TP-Link strong safeguard provide security coverage from core to edge and protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and additional Gigabit capability, TP-Link L2 managed Switch TL-SG5428 can provide you the ideal access-edge solution.

What's Included With This Item

  • TP-Link JetStream 24-Port Gigabit L2 Managed Switch
  • Power Cord
  • Quick Installation Guide
  • Resource CD
  • Rackmount Kit
  • Rubber Feet
  • TP-Link Warranty

Key Features

  • LLDP serves to reduce the complexities of the network
  • Link aggregation (LACP) increases aggregated bandwidth, optimizing the transport of business critical data
  • IEEE 802.1s Multiple Spanning Tree, provides high link availability in multiple VLAN environments
  • Support IEEE 802.1d/w/s Spanning Tree (STP/RSTP/MSTP)
  • IGMP snooping allows the forwarding of multicast packets such as streaming audio and video, without increasing network broadcast congestion
  • Non-blocking Layer 2 Switching Capacity
  • GVRP (GARP VLAN Registration Protocol) allows automatic learning and dynamic assignment of VLANs
  • Supports 4K active VLAN groups and 4K VLAN IDs
  • Q-in-Q increases the network scalability by providing a hierarchical structure
  • Supports 802.1P, Class of Service (CoS) with 4 priority queues per port
  • Rate limiting confines the traffic flow accurately according to the preset value
  • Supports multiple industry standard user authentication methods such as 802.1x, RADIUS Authentication, Supports 400 IP-MAC-Port-VID Binding entries
  • IP Source Guard prevents IP spoofing attacks such as DoS
  • Port Security enhances the security of all ports
  • L2/L3/L4 Access Control Lists restrict untrusted access to the protected resource
  • Virtual stackable provides high scalability and easy Single-IP-Management
  • Supports Telnet, Cisco like CLI, SNMP v1/v2/v3, RMON and web access
  • Supports SSL and SSH encryptions
  • Port Mirroring enables monitoring selected ingress/egress traffic

Technical Specs

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 gigabit SFP Slots
1 Console Port
The SFP slots support 1000Mbps only
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
Power Supply 220-240VAC, 50/60Hz
Bandwidth/Backplane 56Gbps
MAC Address Table 8k
Packet Forwarding Rate 41.6Mpps
Jumbo Frame 10240 Bytes
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
VLAN Support IEEE802.1Q with 4K VLAN groups and 4K VIDs
Port/ MAC/Protocol-based/Private VLAN
GARP/GVRP
Access Control List L2 - L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based
Security IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN
DoS Defense
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
Management Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Certification CE, FCC
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Operating Temperature 0deg.C-40deg.C (32 deg.F-104 deg.F)
Storage Temperature -40deg.C-70deg.C (-40 deg.F-158 deg.F)
Operating Humidity 10%-90% non-condensing
Storage Humidity 5%-90% non-condensing
Dimensions (W x D x H) 17.32 x 10.2 x 1.73" / 43.9 x 25.9 x 4.39 cm
