About the TP-Link TL-WR940N

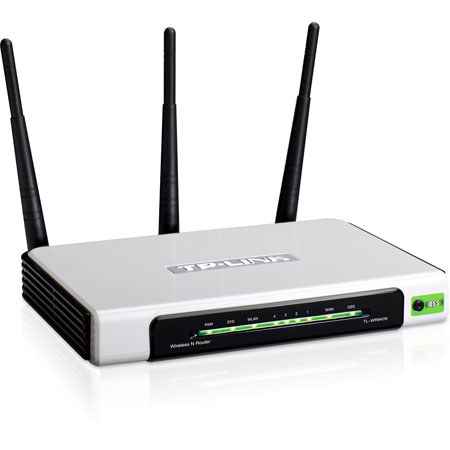

The TP-Link TL-WR940N 300 Mbps Wireless N Router is a combined wired / wireless network connection device engineered for small business and home office networking needs. It features MIMO Technology and 3 antennas to enhance wireless robustness and stability. The router boasts data transfer rates of up to 300 Mbps. It produces exceptional, advanced wireless performance, making it great for HD video streaming, VoIP and online gaming. Additionally, the Quick Setup Security (QSS) button on the sleek exterior ensures WPA2 encryptions, safeguarding the network against outside intrusions. It also makes life easy, since you don't have to remember a password. IP QoS based bandwidth control enables network administrators to determine what quantity of bandwidth is allotted to each computer, helping to reduce congestion and prevent bandwidth abuse.

Complying with the IEEE 802.11n standard, TL-WR940N is able to establish a wireless network and achieve up to 15x the speed and 5x the range of traditional 11g products. It also demonstrates a better ability to mitigate data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Easily pick up your wireless network with a long-distance connection of which legacy 11g products may not be capable.

This router possesses the speed to work smoothly with virtually any bandwidth-intensive application, including VoIP, HD streaming or online gaming, without lag time. Utilizing its powerful N technologies, the router can also transform your home and even your yard into a large hot-spot. Clear Channel Assessment (CCA) automatically avoids channel conflicts via the clear channel selection feature and completely realizes the benefits of channel binding for substantially improved wireless performance.

Feel more secure knowing that TL-WR940N offers WPA / WPA2 encryptions (both Personal and Enterprise) produced by the WI-FI Alliance industry group, promoting interpretability and security for WLAN. The router includes a CD with an Easy Setup Assistant to lead you through the setup process step-by-step and even assists you with wireless network settings and security configurations.

TP-Link TL-WR940N Includes

  • TP-Link TL-WR940N 300Mbps Wireless N Router
  • Power Supply Unit
  • Resource CD
  • Quick Installation Guide
  • TP-Link 2 Years Limited Warranty

TP-Link TL-WR940N Features

  • Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and VoIP
  • 3T3R MIMO delivers greater throughput at range versus conventional 2T2R
  • Easily setup a WPA encrypted secure connection at a push of the QSS button
  • WDS wireless bridge provides seamless bridging to expand your wireless network
  • SST dramatically increases link robustness and stability
  • CCA improves wireless performance while automatically avoiding channel conflicts
  • QoS function assures the quality of VoIP and multimedia streaming
  • Features parental control function managing the internet access of children or employee's computer
  • Supports virtual server, special application and DMZ host ideal for creating a website within your LAN
  • Offers Auto-mail function for system log, convenient for managing the router
  • Backward compatible with 802.11b/g products
  • Easy Setup Assistant provides quick & hassle free installation
  • External fixed antennas allow for better alignment and stronger antenna upgrades
  • Sleek exterior, can be mounted on a wall or placed horizontally on a table or desk

TP-Link TL-WR940N Specifications

Interface 4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Button Quick Setup Security Button
Reset Button
External Power Supply 9VDC / 0.85A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna 3dBi Fixed Omni Directional Antenna
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP <20dBm(EIRP)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond
DHCP Server, Client, DHCP Client List, Address Reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management Access Control
Local Management
Remote Management
Certification CE, FCC, RoHS
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Operating Temperature 0 Deg.C to 40 Deg.C (32 Deg.F to 104 Deg.F)
Storage Temperature -40 Deg.C to 70 Deg.C (-40 Deg.F to 158 Deg.F)
Operating Humidity 10% to 90%, non condensation
Storage Humidity 5% to 90% non-condensing
Dimensions ( W x D x H ) 7.9 x 5.5 x 1.2" (200 x 140 x 28mm)
