Al Nagler eagerly pushed Ethos designer Paul Dellechiaie to extend the 3.7mm focal length to reach 110°, the same field size as the LEM Simulator optics Al designed years ago to train NASA astronauts for lunar landings.

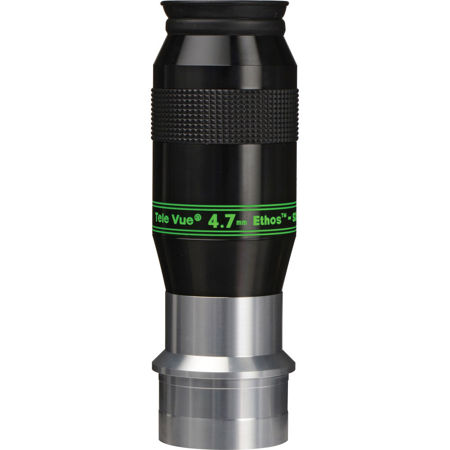

The 4.7mm Ethos-SX, like its 3.7mm progenitor, is designed and crafted to combine its exceedingly wide field of view with all the contrast, color-rendition, distortion correction and center-to-edge sharpness needed to achieve that natural view.
Compared to a lower power eyepiece with the equivalent TFOV (similar field stop)such as an 11mm Pl"ssl (9.1mm field stop), the greater power - for higher resolution, and smaller exit pupil (for a darker background to enhance contrast) reveals a deep sky experience "even better than you imagined".
The 4.7mm is a 1¼" format and is parfocal with the wide range of 1¼" Tele Vue eyepieces. A2" adapter is included.
|Barrel Size||1-1/4" / 2" Adapter (included)|
|Apparent Field of View||110 deg|
|Eye Relief||15mm (accepts DIOPTRX eyesight astigmatism corrector)|
|Field Stop||Effective Diameter: 8.94mm|
|Weight||1.30 lbs / 20.8 lbs|
