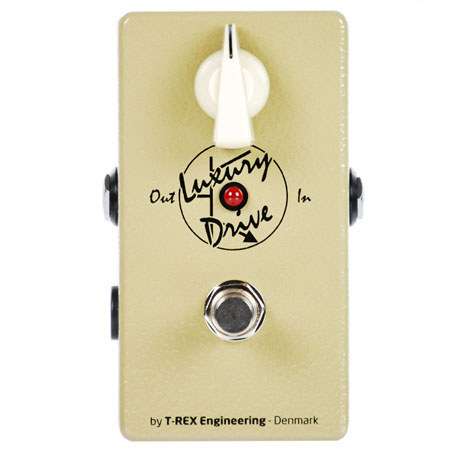

T-Rex Engineering Gristle Luxury Drive Boost Pedal

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$149.00 $6 per week
Free Expedited Shipping
Add to Wishlist

About this item

The Luxury Drive is designed to serve as a boost to your signal and retain the tonal characteristics of your guitar and amp. The increase in signal from the Luxury Drive offers an added edge of treble-licious tone with a slight bit of touch sensitive compression. Try the Luxury Drive in front of your favorite overdrive or distortion pedal for a little added luxury to your dirty signal.

Key Features

  • Insert a 9V alkaline battery or connect the pedal to one of the T-Rex Fuel Tank power supplies (not included). This pedal accepts both 9 and 12 V DC
  • Plug your guitar into the INPUT jack and run a lead from the OUTPUT jack into your amp
  • Adjust the LEVEL setting until you've found the sound you're looking for
  • With the Level control set to the lowest setting you will get a slight boost in the output signal. Turning the level control to the highest setting yields an increase in signal to pummel your effects rig or amp
  • To replace the battery in your Luxury Drive, remove the bottom cover plate of the pedal
  • Luxury drive can also be powered by a 9-12V DC power supply. It is important to use a DC power supply of correct voltage and polarity

Technical Specs

Input Impedance @ 1KHz Higher than 1 megohm
Output Impedance@1KHZ Lower than 10kOhm
Power supply 9V DC
Minimum Power supply Voltage 8V DC
Maximum Power supply Voltage 12,5V DC
Current Draw @ 9V DC 7mA
Maximum Input signal Vp/p 3Vp/p
Battery Type 9V battery 6F22
Battery Life 12 - 16 hour
External connectors Input Jack. Output Jack, 9V DC jack
Controls On/Off, Level
Dimensions (D x W x H) 114 x 70 x 48 mm ( 4.5 x 2.8 x 1.9 in)
Weight 240g (8.5 oz)
