T-Rex Engineering

T-Rex Engineering PolySwitch AB Stereo Line Switch Pedal

SKU: TXPOLYSWITCH MFR: POLYSWITCH
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$99.00 List Price

Our Price

$75.00
Free Shipping
Qty:
Add to Wishlist

About this item

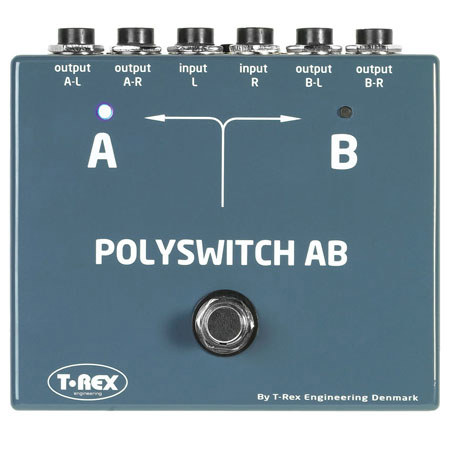

The T-Rex PolySwitch AB stereo line switch pedal is a hardwired switch, from the brilliant minds at T-Rex in Denmark. Designed to give guitarists a way to send a stereo or mono signal (guitar, keyboard, etc) to two separate destinations and allow the user to switch between them. A buffer switch boosts the signal to compensate for long cable runs or other factors requiring some extra juice. Add top of the line electronics and the T-Rex PolySwitch AB stereo line switch pedal is the ultimate AB pedal.

Key Features

  • The T-Rex PolySwitch AB stereo line switch pedal can also be used backwards. This allows you to send 2 guitars to one amplifier, mixer or other input and switch between them

Technical Specs

Input Impedance @ 1KHz with buffer OFF 3,5Mohm
Input Impedance @ 1KHz with buffer ON 862Kohm
Output Impedance @ 1KHz with Buffer OFF Greater than 10Mohm
Output Impedance @ 1KHz with Buffer ON 120Ohm
Power supply 9V DC (Power tool 9)
Minimum Power supply Voltage 8V DC
Maximum Power supply Voltage 12,5V DC
Current Draw @ 9V DC 19mA
Maximum input signal Vp/p W/buffer OFF Input = output. No limit
Maximum input signal Vp/p With buffer ON 4Vp/p
Battery Type 9V battery 6F22
Battery Life 5 to 8 hours
External connectors Input(L), Input(R), Out(A)left/ Right, Out(B)left/ Right
Controls On/Off, buffer
Dimensions (D x W x H) 120 x 100 x 55 mm (4.7 x 3.9 x 2.2 in)
Weight 430 g (15.2 oz)
