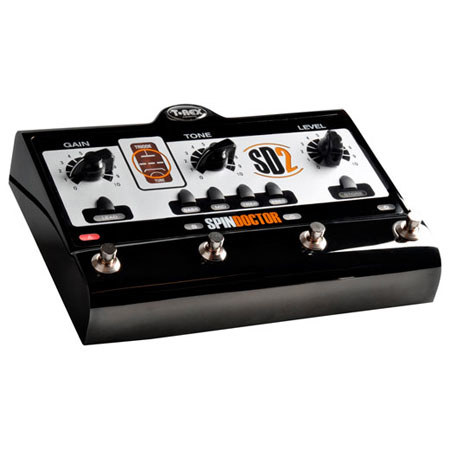

The T-Rex SpinDoctor 2 is a masterpiece of sonic art, delivering a wider spectrum of clean and dirty sounds and a richer, more vibrant tone. Plug the T-Rex SpinDoctor 2 into your stage amp and experience nothing less than the best overdrive pedal on the planet. The T-Rex SpinDoctor 2 also works as a tube preamp. Simply plug it directly into a power amp via the output jack. Use the speaker-simulation output in the studio to plug into a studio mixer or AD converter connected to your computer. With the special level and frequency knobs, you can set the volume and define the character of your virtual cabinet.
The T-Rex Spindoctor 2 features four custom channels of analogue overdrive - each with its own settings for gain, bass, mid, treble, presence and output level. The T-Rex Spindoctor 2 comes with motorized knobs that automatically adjust when you switch channels - like faders on deluxe studio mixing boards. Tone controls on the SpinDoctor 2 let you tune your tone (bass, mid, treble and presence) for each individual channel. When you switch channels, all your settings conveniently change too - giving you the perfect depth, sustain and edge no matter how much gain you apply.
|Input Impedance @ 1KHz||306Kohm|
|Output Impedance @ 1KHz||522Ohm|
|Simulator Impedance @ 1KHz||111Ohm|
|Power supply||12V DC|
|Minimum Power supply Voltage||11,8V DC|
|Maximum Power supply Voltage||12,2V DC|
|Current Draw @ 12V DC||1.5A|
|Maximum input signal||Vp/p 2Vp/p.|
|External connectors||Input Jack. Output Jack Output Jack Simulator, 12V DC Jack, Midi (5pole Din)|
|Controls||Switch A, Switch B, Switch C, Switch D, Level, Drive Tone, Sim Level, Sim Frequency|
|Dimensions (D x W x H)||190 x 250 x 65mm (7.5 x 9.8 x 2.6 in)|
|Weight||2.8 Kg ( 6.2 lbs) (with Power supply)|
