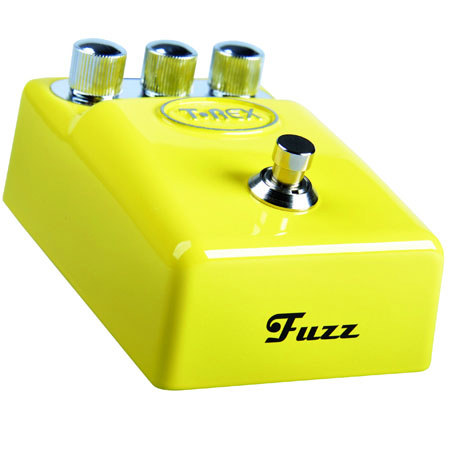

T-Rex Engineering ToneBug Fuzz Guitar Effects Pedal

T-Rex Engineering

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About T-Rex Engineering

T-Rex ToneBug Fuzz transforms the sound of your guitar and the music you make with a rich, creamy hyper-distortion you'll recognize from decades of classic rock, funk and other genres. With exactly the controls you need and nothing you don't, Fuzz is simple to set up, add to your pedal board and use - night after night.

T-Rex Engineering Features

  • Classic fuzz effects with no unnecessary complications
  • Intuitive Fuzz, Level and Tone controls

T-Rex Engineering Specifications

Input Impedance @ 1KHz
Higher than 1 M Ohm
Output Impedance @ 1KHz
Lower than 1 K Ohm
Power supply
Minimum Power supply Voltage
8,5V DC
Power supply Voltage
12,5V DC
Current Draw @ 9V DC
25 mA
Maximum input signal Vp/p
3,2 Vp/p
Battery Type
9V battery 6F22 Alkaline
Battery Life
8 to 12 Hours
External connectors
Input Jack. Output Jack, 9V DC Jack (center pin negative)
On/Off, Fuzz, Tone, Level
Dimensions (D x W x H)
120 x 78 x 60 mm (4.7 x 3.1 x 2.4 in)
0.404 Kg (0.89 lbs) (excl. battery)
