Azden 111XT Wireless Camera Mountable VHF Plug-In System

Mfr. Part: 111XT     SKU: VDAZ111XT

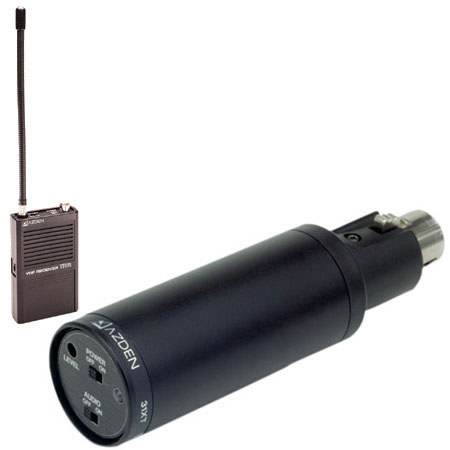

Azden 111XT Wireless Camera Mountable VHF Plug-In System
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes
111R and 31XT

Description
Sharing the same circuitry as the Performance Series, the 111R receiver has been designed to meet the demanding needs of today's professional videographer. The Producer Series delivers superb RF performance, and a wide, smooth frequency response. Availabe in 25 frquencies in 169-214MHz, it has a range of more than 300 feet.

The heart of the system is the 111R receiver.It incorporates the following features: Balanced or unbalanced output capability, output volume adjustment, adjustable mute/squelch, removeable rubber-ducky antenna, 9V battery or DC 12V power input, mono mini-to-mini output cable (standard).

31XT PLUG-IN TRANSMITTER This unique transmitter snaps onto your favorite wired handheld microphone (any metal-body with XLR connector) turning it into a wireless microphone!

Specifications
31XT Plug-in Transmitter
Frequency Range25 VHF Channels (169.505 - 197.325 MHz)
Frequency Response40Hz to 18KHz (+/- 3dB)
Dynamic Rangebetter than 100dB
Audio Distortionless than 1.0% (± 15K deviation)
S/N Ratiobetter than 95dB
Operating Temperatures0° C to 45° C
Operating Range100m under ideal conditions
OscillatorCrystal Controlled
Type of EmissionFM
AntennaExternal Antenna (Mic housing)
Pre-emphasis50 Micro Sec.
MAX Input Level0dBm - 10dBm
Microphone Unitn/a
RF Output Power15mW (50mW MAX)
Input Impedance47 ohms
Audio Adj. Range+30dB
Battery1 (AA)
Battery Life6 to 8 hours with Alkaline Battery
Dimensions33mm(°) x 120mm (H) - (1.3" x 4.7")
Weight92g (3.3 oz) Without Battery
