Azden 1200SiS UHF Body-Pack System with Anton Bauer Mount Receiver, Belt-Pack Transmitter & ECM-44H Lavaliere Microphone

Mfr. Part: 1200SIS     SKU: VDAZ1200SIS

Azden 1200SiS UHF Body-Pack System with Anton Bauer Mount Receiver, Belt-Pack Transmitter & ECM-44H Lavaliere Microphone
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes

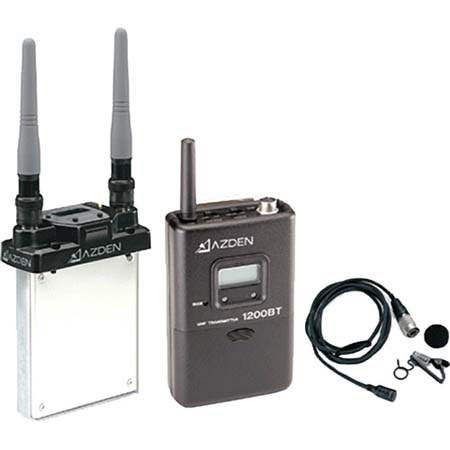

Azden 1200URX/Si Receiver - 1200BT Belt-pack Transmitter - ECM-44H Lavaliere Microphone - Azden Warranty

Description
The redesigned Azden 1200 series ENG wireless mic system for broadcast professionals has been updated to operate in the 628-662 MHz band, making it compatible with the DTV changeover coming in early 2009. Offering 188 digitally selectable UHF frequencies (638.125 to 661.875 MHz), the new receivers and transmitters provide superior selectivity in conjunction with an excellent signal-to-noise ratio and extended battery life.

The digital displays also provides information concerning signal strength, diversity antenna function and battery condition. All models benefit from newly improved compander/expander circuitry.

Features
Compander circuit for more natural sound
True diversity system with 2 complete front-ends and high-gain antennas
High 5th-order filters for improved S/N ratio
Multi-function LCD shows channel, frequency, battery info, AF level and diversity operation
DTV-compatible (188) frequencies covering 4 UHF TV bands
Dielectric filters throughout, for improved image rejection and superior diversity isolation

Specifications
RF Carrier Frequency Range188 steps ~ 638.125 - 661.875 MHz
Effective Operating Range200 - 300 ft ~ 60 - 100m
Frequency Response50 - 15kHz (± 1.5dB)
RF Sensitivity (12dB SINAD)1.2µV
Adjacent Channel Selectivity> 70dB (± 250kHz)
Image Rejection> 93dB
IF Rejection> 93dB
Audio THD< 0.8%
Audio Output40dBm ± 40kHz Deviation (-20dBm ± 40kHz Deviation for 1200URX\Si)
Output Impedance600O (300O for 1200URX\Si)
Signal/Noise Ratio> 62dB (± 5kHz Deviation) "A" Weighted
Power Requirements11 - 15V DC @ 220mA (10 - 17V DC @ 200mA for 1200URX\Si)
Operating Temperature Range-500 - +1220 F ~ -100 - +500 C
Max Modulation Sensitivity-4dBm
MIC Level / Imped.-60dBm / 2.2kO (± 5kHz Deviation)
Dimensions2.48 (W) x 3.86 (H) x 1.12 (D) inches
Weight overall4.00 lbs
WarrantyAzden warranty
