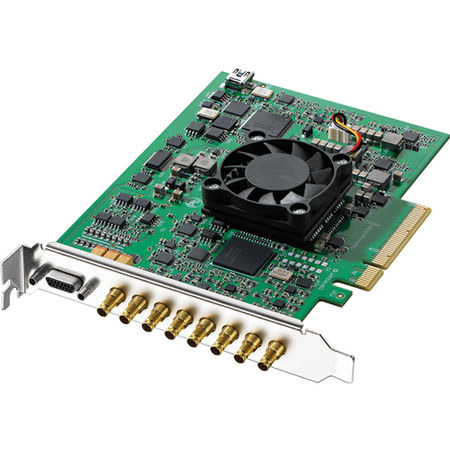

Blackmagic Design DeckLink 4K, 4 3G-SDI Inputs/Outputs
Blackmagic Design

Blackmagic Design DeckLink 4K, Four 3G-SDI Inputs/Outputs

SKU: VDBMDL4K MFR: BDLKS4K
This item is currently back ordered from the Mfr. We have no estimated time of arrival for this item Please note: You can order this now and have us ship it as soon as it arrives. We will not charge your card for any backordered items, until it is ready to actually ship.
What's Included
What's Included With This Item:
  • Blackmagic Design DeckLink 4K
  • Breakout Cable
  • Blackmagic Design 3 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$565.25
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Blackmagic Design DeckLink 4K is an SDI capture card that captures and plays back monstrously large native 4K video that originates from digital intermediate workflows for film productions, or from cameras such as the Red One and the Vision Research Phantom 65. The 8-lane PCIe card features four mini-BNC inputs and four mini-BNC outputs to facilitate capture and playback via single- or dual-link SDI for SD, HD and 2K - and via quad-link (i.e., using all four connectors) for 4K.

Suddenly your postproduction or high-end presentation infrastructure can accommodate video resolutions that are four times as large as 1920 x 1080 HD. The Windows-, Mac- and Linux-compatible DeckLink 4K is perfect for true native 4K playback (at resolutions up to 4096 x 2160) on projectors such as the Christie CP4320. Or output to decks for archiving 4K footage on media such as HDCAM SR tapes. DeckLink 4K includes a breakout cable with RS-422 control, reference and audio monitoring connectors.

Like the rest of the DeckLink line, the DeckLink 4K card is designed to be compatible with the most popular professional postproduction software, including Apple Final Cut Pro, Avid Pro Tools, eyeon Fusion and Adobe Premiere Pro, After Effects and Photoshop. DeckLink cards support Final Cut Pro features such as 10-bit rendering, RT Extreme, 16-channel audio and deck control, plus there's support for ProRes, JPEG, DV, DVCPRO, DVCPRO HD and 8- & 10-bit uncompressed video.

For Premiere Pro, DeckLink 4K includes a full suite of plug-ins with deck control and full support for 8- & 10-bit uncompressed AVI and QuickTime files, as well as Motion JPEG and DVCPRO HD, which can all be played back on the same Premiere Pro timeline without rendering.

What's Included With This Item

  • Blackmagic Design DeckLink 4K
  • Breakout Cable
  • Blackmagic Design 3 Years Limited Warranty

Key Features

  • Connect to any SDI-based device and take advantage of the DeckLink 4K's low SDI jitter to facilitate the longest SDI cable lengths. Connect to an SDI-enabled camera or 4K projector
  • DeckLink 4K features built-in support for dual-stream workflows, so it's ready for stereoscopic 3D. Simply connect dual left- and right-eye sources to the A and B input and output SDI connections and DeckLink 4K will capture to stereoscopic 3D
  • The board supports a massive 16 channels of uncompressed SDI embedded audio, perfect for delivering all audio elements for your master surround, stereo and sub-mixes on one pass
  • The included Media Express deck control software lets you control a deck remotely via RS-422 for capture and playback of DPX, AVI and QuickTime clips with timecode accuracy

Technical Specs

SDI Input/ Output 4x 10/12-bit SD/HD/2K/4K and 2D/3D switchable
Analog Audio Outputs 2 channels of unbalanced analog audio via RCA connectors
AES/SBU Audio Output 2 channels unbalanced with sample rate converter via BNC connectors
SDI Audio Input / Output 16 Channels embedded in SD, HD, 2K and 4K. 8 Channels embedded in 4K
Computer Interface PCI Express 8-lane, compatible with 8- and 16-lane PCIe slots
Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K, or 4K format
Device Control Sony-compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control
SD Format Support 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC
HD Format Support 720p50, 720p60, 720p59.94, 1080i50, 1080i59.94, 1080PsF23.98, 1080Ps24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2K Format Support 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25, 2048 x 1556PsF23.98, 2048 x 1556PsF24, 2048 x 1556PsF25, 2048 x 1556p23.98, 2048 x 1556p24 and 2048 x 1556p25
4K Format Support 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2048p23.98, 4096 x 2048p24, 4096 x 2048p25, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
SDI Metadata Support VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning
Video Sampling 4:2:2 and 4:4:4
Audio Sampling Television standard sample rate of 48 kHz and 24-bit
Color Precision 8/10/12-bit
Color Space REC 601, REC 709, CIE 1931
Multiple Rate Support SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD 2K and 4K SDI
Colorspace Conversion Hardware-based real-time
3D Processing Dual-stream and frame-packed capture & playback
HD Down Conversion HD to SD on video capture or video playback
HD Up Conversion SD to 720HD or 1080HD; 720HD to 1080HD on video capture.
HD Cross Conversion 720HD to 1080HD on video capture
Real-Time Effects Apple Final Cut Pro internal effects in DV, DVCPRO HD, ProRes and uncompressed on Intel Mac OS X. Adobe Premiere Pro Mercury Playback Engine effects in DV, MJPEG, DVCPRO HD, DSLR, AVCHD, XDCAM, XDCAM HD and uncompressed
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux
Firmware Upgrade Firmware built into software driver. Loaded at system start or via updater software
Installation PCI Express 8-lane; compatible with 8- and 16-lane PCI Express slots on Mac OS X, Windows 7 and Linux. Mac OS X systems require a Mac Pro computer
