Blackmagic Design Intensity Pro HDMI Editing Card,
See all Blackmagic Design items

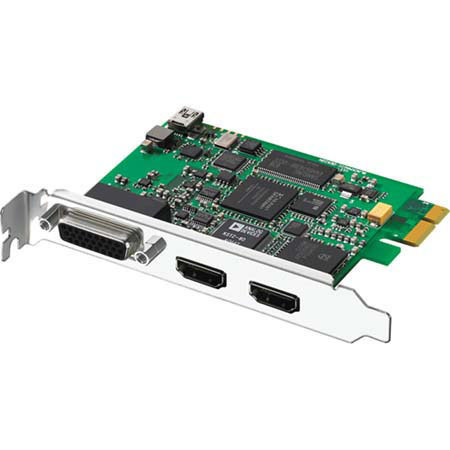

Blackmagic Design Intensity Pro HDMI Editing Card with PCI Express

SKU: VDBMIP

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2012-07-01T21:00:00

Rated 5 out of 5

Excellent Card for Live Streaming

I use this card to Live Stream through Wirecast for Youtube Nonprofit Partners. I connected the HDMI output from our Atem 1 mixer to the HDMI input on this card. Everything works great, but you'll definitely want to make sure you use a Windows 7 machine with an i3 processor or better for the best reliability.

DANIEL B.

2011-12-11T19:00:00

Rated 5 out of 5

Good buy

Using this for xbox360 capture, works great.

izzmanxr

2011-10-16T21:00:00

Rated 5 out of 5

Great card Simple to Install

This card is exactly what I was looking for. Analog i/o plus HDMI i/o. And it came at a price that doesn't break the bank!

sean f.

2011-09-03T21:00:00

Rated 4 out of 5

Very specific needs, very complicated.

good product, though not for everyone. drivers are complex and difficult to use, no real software included just an SDK

jim

2009-02-05T19:00:00

Rated 4 out of 5

Good investment

The user has to have his act together with knowledge of the many codecs used in HD editing, etc. Once all of this marvelous unit has its correct settings, the images for projection and monitors is very good. I am still in the learning curve of what it's potential output,however for reviewing and editing on a big screen, it works well. I am using MacPro and it has some quirky starts and re starting the computer has been necessary on occasions when FCP won't fire up the output card.

filmguy3d

Blackmagic Design Intensity Pro HDMI Editing Card, Specifications

  • Connections

    Intensity Pro

  • Digital Video Input

    1 x HDMI input

  • Digital Video Output

    1 x HDMI output

  • Supported HDMI formats

    525 NTSC, 625 PAL, 720HD and 1080HD switchable

  • HDMI Audio Input

    2 Channels

  • HDMI Audio Output

    2 Channels

  • Analog Video Input

    Component, NTSC, PAL or S-Video

  • Analog Video Output

    Component, NTSC, PAL or S-Video

  • Analog Audio Input

    2 Channel RCA HiFi audio in 24 bit

  • Analog Audio Output

    2 Channel RCA HiFi audio in 24 bit

  • SPDIF Audio Output

    2 Channel 24 bit

  • Dual Rate support

    HDMI and Analog Component switches between high definition and standard definition

  • Sync Input

    None

  • Device Control

    None; Use FireWire if capturing from HDMI cameras

  • Updates

    Firmware for cards built into software driver
    Loaded at system start, or via updater software

  • HD Format Support

    1080i50, 1080i59.94, 720p50 and 720p59.94

  • SD Format Support

    625/25 PAL and 525/2997 NTSC

  • HDMI Video Sampling

    4:2:2

  • HDMI Color Precision

    4:2:2

  • HDMI Color Space

    YUV 4:2:2

  • HDMI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • Card type

    PCI Express 1 lane, compatible with 1,4,8 and 16 lane PCIe slots

  • Colorspace Conversion

    Hardware based real time.

  • HD Down Conversion

    Real time 1080HD and 720HD to standard definiton during video playback
    Real time standard definition to 1080HD and 720HD during video capture

  • Real time effects

    Apple Final Cut Pro internal effects on Mac OS X
    Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed edit formats

  • Firmware Upgrade

    Firmware for cards built into software driver
    Loaded at system start, or via updater software

  • Installation

    PCI Express 1 lane, compatible with 1, 4, 8, 16 lane PCI Express slots

  • Warranty

    Blackmagic Design warranty

  • UPC Code

    9338716000160

About Blackmagic Design Intensity Pro HDMI Editing Card,

FEATURED REVIEWS

Excellent Card for Live Streaming

By DANIEL B.

I use this card to Live Stream through Wirecast for Youtube Nonprofit Partners. I connected the HDMI output from our Atem 1 mixer to the HDMI input on this card. Everything works great, but you'll definitely want to make sure you use a Windows 7 machine with an i3 processor or better for the best reliability.

Good buy

By izzmanxr

Using this for xbox360 capture, works great.

The Blackmagic Design Intensity Pro HDMI Editing Card is an excellent choice for your digital and analog capture needs. The card fully supports NTSC, PAL and HD video via HDMI, component, composite or S-Video. It supports two channels of embedded, RCA or S/PDIF audio at television-standard sampling rates. The Intensity Pro supports 4:2:2 color sampling for superior chromakey performance. The card can work with both Windows and Macintosh computers, making it an excellent choice for your editing needs regardless of your operating platform.

Blackmagic Design Intensity Pro HDMI Editing Card, Features

  • True HDMI Digital Connections: Intensity features HDMI-in for connecting to cameras and digital set-top boxes for the highest quality capture. Get higher quality capture from HD cameras by capturing direct and bypassing the HDV compression chip for high quality video captured
  • Go Beyond HDV Video Quality: HDV video compression suffers from not being full 1920 HD resolution and the extra processing required makes editing difficult. With Intensity, you can now capture and play back full resolution HDTV uncompressed video for true broadcast and feature film quality editing
  • Live Production with On-Air 2.0: Experience the incredible excitement of filming events live. Included with Intensity is Blackmagic On-Air 2.0, which allows two Intensity boards to be plugged into Apple Mac Pro systems for live mixing between two HD or SD cameras
  • Windows and Mac OS X Compatible: Plug into Windows or Mac OS X computers with the same card and use your favorite software, including Final Cut Pro, Premiere Pro, After Effects, Photoshop, Fusion and many more
  • Professional Video Standards: Instantly switch between HD and SD video standards including HDTV 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, NTSC and PAL

What's in the box:

  • Blackmagic Design Intensity Pro HDMI Editing Card
  • Software CD-ROM
  • Breakout Cable
  • Blackmagic Design Warranty
