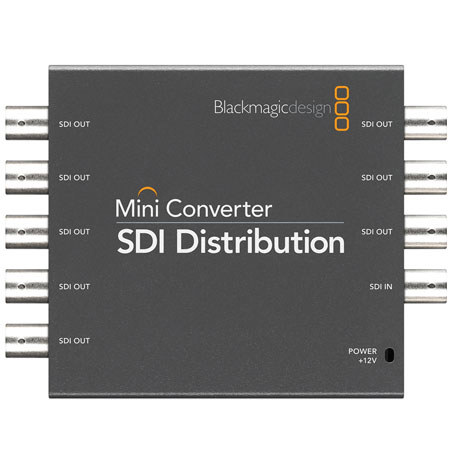

About Blackmagic Design SDI Distribution Mini Converter
Blackmagic Design SDI Distribution Amplifier Mini Converter is a ideal for connecting the same signal to several devices at once. SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs. It even handles ASI!. It also supports ancillary data and embedded audio.
Blackmagic Design SDI Distribution Mini Converter Features
Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology
Mini Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra low noise analog video and audio for a true broadcast quality solution. You also get the latest broadcast technology such as re-clocking and 3 Gb/s SDI
Most Mini Converters feature 24 bit analog and 24 bit digital audio and HDMI models support HDMI audio. Unlike other converters you don't need custom audio cables and the standard 1/4 inch audio jacks switch between balanced analog audio or AES/EBU digital audio
With the latest 3 Gb/s SDI technology built into Mini Converters you get modern broadcast technology that's future proof. Upgrades can be loaded via the USB connection for future video format compatibility
Mini Converters instantly switch between all SD and HD video formats whenever the video input changes. A huge range of standards are supported including NTSC, PAL, 1080i/59.94, 1080i/50, 1080PsF/23.98, 720p/59.94, 720p/50 and new formats can be added via USB
Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events
Unlike other converters, a high quality low noise universal power supply is included with international socket adapters for all countries. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight and secure!
With Blackmagic Design's Mini Converters, it's as simple as using a pen to change settings. Settings vary between models and include settings such as AES/EBU or analog audio, analog video connections and more. All Mini Converters are similar, so they're super easy to understand and use
