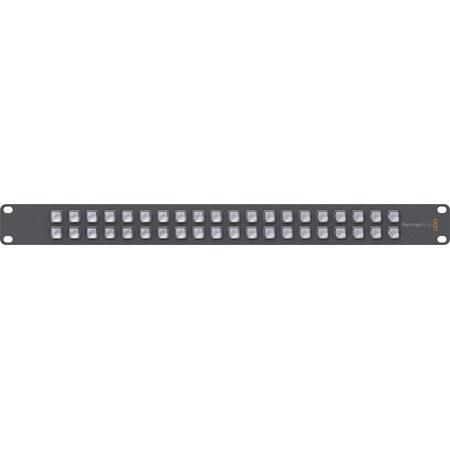

Blackmagic Design Smart Videohub's control buttons are designed for high reliability and the front panel can be removed to allow labeling of buttons. All buttons are illuminated by brilliant white LEDs and when used in dark rooms, all buttons can be backlit so button labels can be clearly seen.
Videohub Smart Control features 40 YRGB illuminated crystal look buttons that can be set to any router output. Videohub Smart Control can be installed under each deck and monitor in a facility, so the router output to that monitor can be set with a single button press. This is a much faster way of working, because all routing only requires a single button press.
Videohub Smart Control can also be used with multiple destinations and customers can select to have a single destination for the whole control panel, or multiple destinations. When working with multiple destinations, buttons on the front panel become gold colored and customers can select as many destinations as they need.
Videohub Smart Control has been designed to be easy for customers to self install. Videohub Smart Control uses standard Ethernet networking and simply plugs into the existing computer network. If used in mission critical environments, Videohub Smart Control could be connected to a dedicated switch. Videohub Smart Control can be powered via power over Ethernet (PoE) without the need for a power supply. br>
Because Videohub Smart Control has been designed to fit into creative post production facilities, it includes attractive crystal look buttons that are designed for high reliability. The front panel can be removed to allow labeling of buttons.
|Hardware Control||40 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.|
|Button Configuration||Included free for Windows and Mac OS X via USB 2.0 high speed (480Mb/s) interface.|
|Firmware Upgrade||Via included firmware updater application.|
|Installation||1 rack unit size. Less than an inch deep.|
|Power Supply||1 x Universal power supply included with international socket adapters for all countries.|
|Power Fail Protection||Button configurations and router communication preserved and restored instantly at power on.|
