Item Includes
AC/DC Adapter 90-240VAC, 50/60Hz, + DC 5V / 6Watts AC Power cord, Cable sets: RCA cable 3R to 3R x 1, Y/C (S-Video) cable x 1, IEEE1394/400Mbps FireWire cable x 1
|
Description
| PC, PowerMac and iMac platform video editors now have a simple, competent solution for transferring video and audio back and forth between analog tape and DV. |
Features
 |

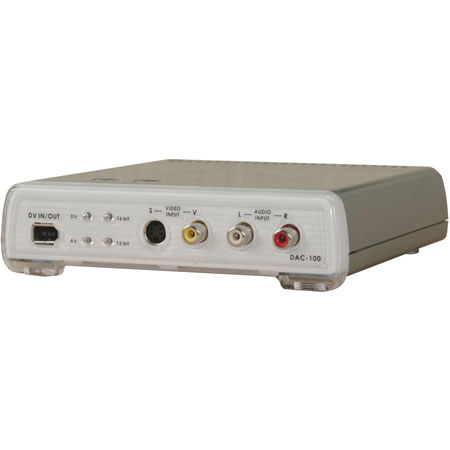

Composite/S-Video to 1394/DV Bi-Directional Converter |
Specifications
| Selectable video standard | NTSC (525 lines /60Hz), PAL (625 lines /50Hz). |
| Inputs | DV, Y/C, Composite |
| Outputs | DV, Y/C, Composite Two 6-pin FireWire (iLink) I/O ports, Available in NTSC 4:1:1 or PAL 4:2:0 DV25 format (25Mbps data transfer rate) |
| Selectable Video level | at 0 IRE or 7.5 IRE Video Comb Filter for High Quality Video Video input source auto-detection |
| Audio Sampling Rate | Selectable 32KHz (12-bit) or 48 KHz (16-bit) for unbalanced audio. |
| Audio Decoding Rate | Selectable 32KHz, 44.1KHz or 48KHz DV audio decoding |
| Formats | DV (iLink), Digital 8, Video 8, Hi8, VHS, S-VHS, VHS-C and S-VHS-C, U-Matic, etc. |
| Computers | PowerMac, iMac, Windows 98/ME/2000 and XP |
| Front Panel | ---- |
| Digital Video Input | Two 6-pin FireWire (iLink) I/O ports. Available in NTSC 4:1:1 or PAL 4:2:0, DV25 format (25Mbps data transfer rate) |
| Analog Video Input | Y/C (S video) (DIN 4-pin 75 ohm)Y: 1.0Vp-p, C: 0.627mVp-p Composite (RCA 75 ohm) 1.0Vp-p |
| Analog Audio Output | Unbalanced Audio RCA x 2 |
| LED Indicators | Video input source: AV or DV |
| Digital audio sample rate | 32KHz/12-bit or 48KHz/16-bit. |
| Rear Panel | ---- |
| Digital Video Output | Two 6-pin FireWire (iLink) I/O ports. Available in NTSC 4:1:1 or PAL 4:2:0, DV25 format (25Mbps data transfer rate) |
| Analog Video Output | Y/C (S video) (DIN 4-pin 75 ohm) Y: 1.0Vp-p, C: 0.627mVp-p Composite (RCA 75 ohm) 1.0Vp-pAnalog Audio Output: Unbalanced Audio RCA x 2 |
| Dip Switch Settings | S1. PAL or NTSC system
S2. 7.5 IRE / 0 IRE
S3. Auto / Manual (Video input detection)
S4. Win2K / Normal mode |
| General | ---- |
| Power input | + DC 5V, 6Watts |
| Dimensions | 6.15"(W) ® 6.0"(D) ® 1.6"(H) 156(W) ® 150(D) ® 40(H) m/m |
| | |
|
