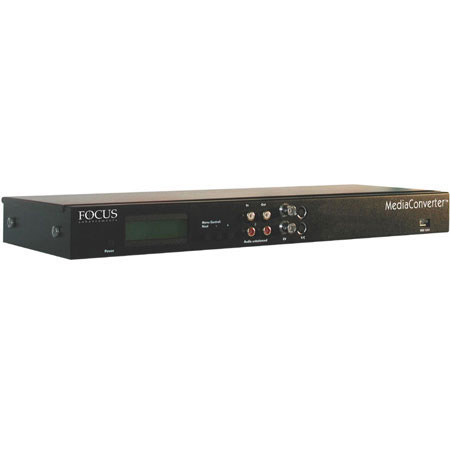

Focus Enhancements Media Converter
What's Included With This Item:
- AC Power Adapter
- One Year Focus Enhancements Media Warranty
Introducing the ultimate solution for the Broadcast and Studio Environments: FOCUS Enhancements' MediaConverter.
Continuing the tradition of industry leading video converters, the FOCUS MediaConverter provides professional, high-quality bi-directional DV/SDI to analog video conversion for flexible integration with your existing sources and processing equipment. When you compare features, performance, and price there isno doubt that the FOCUS MediaConverter is the best value on the market today!
The FOCUS MediaConverter represents the third generation of DV to Analog Video Converters from FOCUS Enhancements. The FOCUS MediaConverter is the most advanced bi-directional converter available to fulfill the needs of professionaland industrial users.
Besides DV to Analog Video Conversion, the FOCUS MediaConverter comes also with SDI and AES/EBU Input and Outputs, so you can convert Analog Video and DV to SDIand vice versa. All outputs work parallel so you can connect a Betacam tape machine, a DV VTR and one video control monitor directly to your DV camcorder orplayer. With the FOCUS MediaConverter, take advantage of the two FireWire connections strategically positioned on the front and the rear side of the unit for easy access.
Take advantage of the wide variety of industry standard protocols FOCUS MediaConverter has to offer including bidirectional VTR control via RS-422 and RS-232 9-pin Interface for firmware updates and system settings.
For Broadcast and Studio Environments, we have also integrated a Genlock Interface to provide synchronization from the FOCUS MediaConverter to a Studio Reference Signal. For easy integration in the Studio Environment, the FOCUS MediaConvertercomes in a 1U 19 rackmountable case. FOCUS MediaConverter provides easy access to front panel controls, which includemenu selection buttons with a backlit LCD display for conversion settings.
The FOCUS MediaConverter is the ideal add-on for systems like AVID Xpress DV, Pinnacle Liquid, Apple Final Cut or Adobe Premiere. Look to the FOCUS MediaConverter to copy your footage from any source to your Firewire laptop to allow editing wherever you like before copying the final edited video back to the tape format of your choice.
FOCUS MediaConverter is also perfect for Desktop Editing Systems including Matrox RT.X or Canopus Storm, which have limited analog video I/O capabilities. Let the FOCUS MediaConverter and selected NLE system convert your old footage from your Betacam stock to a new digital format like DV CAM and SDI. It is that simple!
- NLE Editing Source
- Business & Classroom Video Productions
- Film to Tape Transfer
- Live Productions
- Live Productions
|Video Input/Output Formats:||- DV/DV CAM/DVC PRO 25 on IEEE-1394 6 Pin Interface - SDI (270 Mbit/s) SMPTE 259M/CCIR656-III, BNC - Analog Component Signal: Y 1,0 Vpp, B-Y/ R-Y 0,7 Vpp, 75 Ohm, SMPTE/EBU, BNC - S-Video Signal: Y 1,0 Vpp, C 0,43 Vpp, 75 Ohm, 4 Pin Mini-DIN - CVBS Signal: 1,0 Vpp, 75 Ohm, BNC - Ref. Videosignal: Blackburst 0,3 Vpp, 75 Ohm, BNC|
|Audio Input/Output Formats:||- Analog unbalanced Stereo Audio Signal:Line Level -10 dBV, 47KOhm, RCA - Analog balanced Stereo Audio Signal:+4dbm, low impedance, XLR - Digital Stereo Audio Signal (AES/EBU), balanced, XLR|
|Dimensions & Weight:||- Metal Housing - 19 Rackmount Version -17 5/16 x 1 3/4 x 1 9/16 (440mm x 44mm x 165mm) - 5.51 lbs / 2.5 Kg|
|Power Supply||-External 12VDC 1000mA Wallmount Power Supply Country Appropriate|
- RS 232 9 Pin Interface for Firmware Updates and System settings - Supports bi-directional VTR control via RS-422
