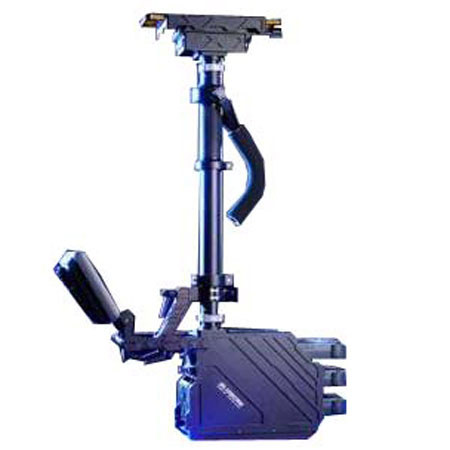

Glidecam Gold Sled with NP-1 Base, Camera Stabilization System

SKU: VDGLGDSNP MFR: GLGDSNP
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$14,900.00
Free Expedited Shipping
Qty:
Add to Wishlist

About the Glidecam Gold Sled

The Glidecam Gold Sled holds any video or film camera weighing from 13 to 40 pounds. The Gold Sled incorporates sophisticated engineering and precision machining to make it lightweight and strong. It is designed with the same look and aesthetics as the Glidecam Gold Arm and Vest. The Gold Series sled is available with one of the various daylight viewable, LCD monitors. The black parts of the Glidecam Gold Sled are anodized black with certain parts hard coated black.

Head
The precision, x-y adjustable Head assembly utilizes low friction Teflon which is incorporated into its hard coat finish. The Head assembly's back panel has a 3-pin Lemo 1B303 style with switchable 12/24 volt power, BNC video in, and a 2 pin Lemo 1B302 style with 12 volt out. The front panel has a 2-pin Lemo 1B302 style with 12 volt out, two 4-pin Lemo OB304 style with video/power out and one 4-pin Lemo OB304 video/power in connectors. The head also has a custom designed video distribution amp installed for clear video signals. The Head also incorporates a drop-in style dovetail camera plate for quick front to back balance. Very, fine tuning, ergonomic knobs control front to back and side to side balance adjustments.

Gimbal
The Sled's no-tools precision Gimbal is made to top of the line quality. The Gimbal incorporates 4 bearings inside the handle to yoke connection (the tilt axis). There are 2 bearings on each side of the yoke, providing 4 bearings for the roll axis. There are 2 central main bearings for the pan axis. This doubles the Gimbal's thrust capacity and creates less than a .0002" deflection off true center. All Gimbal parts are machined within .0005" accuracy and are hard coat black. A very tight knurling has been machined onto the Gimbal Tube to improve handling. An easy to replace soft foam covers the handle grip.

Post
The Sled has a no-tools Telescoping Center Post. The top and bottom of the Post both have no-tools, 90-degree rotation, quick release connectors (bayonet style). This allows the Head and the Base of the Sled to be removed quickly. The custom, shielded, wire coil assembly inside the post has 8-pin Lemo style connectors on both ends for quick disconnect. The Center Post also incorporates an alignment pin as part of the no-tools clamp that controls the extension of the Telescoping Post. This pin keeps the upper and lower posts in alignment so the Head and Base of the Gold Sled are always parallel to each other.

NP-1 Style Base
The NP-1 Style Base for the Glidecam Gold Sled accepts up to three NP-1 style batteries. These batteries deliver 12 volts to the base (for the monitor) and either 12 or 24 volts (switchable) to the head for use with video or film cameras. The Base incorporates one BNC Video out connector, one 12/24 volt power switch, three circuit breakers and two 4-pin Lemo style OB304 video/12 volt power out connectors. The Glidecam Gold Sled monitor mounting bracket can be rotated 180 degrees, with no-tools adjustment so the monitor is viewable during low mode operation.

Glidecam Gold Sled Includes

  • Glidecam Gold Sled
  • Glidecam 90 Day Warranty

Glidecam Gold Sled Specifications

Construction Aluminum
Load Capacity 13 to 38 lbs.
Dovetail Plate Yes
Post Adjustable from 22" to 32" with Gimbal guide scale markings
Gimbal Free floating, "no tools" precision three axis Gimbal (<.0002" deflection off true center)
Dynamic Spin 360 degree panning and tilting
Front Head Assembly/Top Stage 2-pin "Lemo" 1B302 style with 12 volt out, two 4-pin "Lemo" OB304 style with video/power out and one 4-pin "Lemo" OB304 video/power in connectors
Back Head Assembly/Top Stage "Lemo" 1B303 style with switchable 12/24 volt power, BNC video in, and a 2 pin "Lemo" 1B302 style with 12 volt out
Monitor Panasonic TC-7WMS1
