Kramer 103YCB 1:3 S-Video Distribution, Line Amplifier
Kramer Electronics

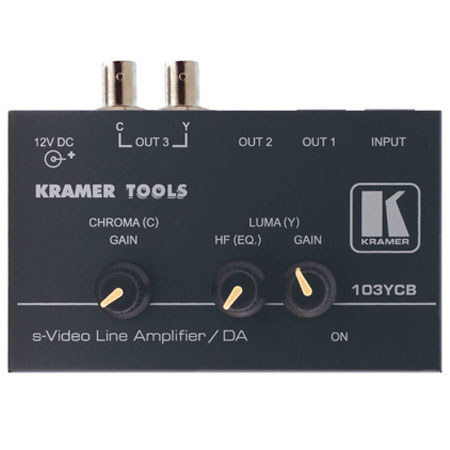

Kramer 103YCB 1:3 S-Video (Y/C) Distribution & Line Amplifier

SKU: VDKR103YCB MFR: 103YCB
What's Included
What's Included With This Item:
  • Kramer 103YCB 1:3 S-Video (Y/C) Distribution & Line Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$144.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer 103YCB is a high-performance line amplifier for s-Video (Y/C) signals. It is ideal for use in systems where the main display device is located a relatively long distance from the signal source.

What's Included With This Item

  • Kramer 103YCB 1:3 S-Video (Y/C) Distribution & Line Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth (Y) - 420MHz (-3dB)
  • 2 outputs (4-pin) & 1 outputs (2-BNC)
  • Y & C Level (Gain) and Y EQ (Peaking) Controls
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input 1 Y/C, Y=1Vpp/75 Ohm, C=0.3Vpp/75 Ohm on a 4-pin connector
Output 2 Y/C, Y=1Vpp/75 Ohm, C=0.3Vpp/75 Ohms, on 4-pin connectors and one output on 2 BNC connectors (Y and C)
Max. Output Level 2.6Vpp/75 Ohm (Y)
Bandwidth (-3dB) 420MHz (Y)
Diff. Gain 0.05%
Diff. Phase 0.03Deg
K-factor <0.05%
S/N Ratio 72.4dB
Control Y level: -1 to +6.5dB, Y EQ.: 0 to +10.5dB, C level: - 0.6 to +5.9dB
Coupling DC(4); AC(c)
Power Source 12V DC, 40mA
Dimensions 12cm x 7.5cm x 2.5 cm (4.7" x 2.95" x 0.98") W x D x H
Weight 0.3kg (0.66lbs) approx.
Warranty Kramer 7 years limited warranty
