Kramer 104LN 1:4 Video Differential and Line Amplifier
Kramer Electronics

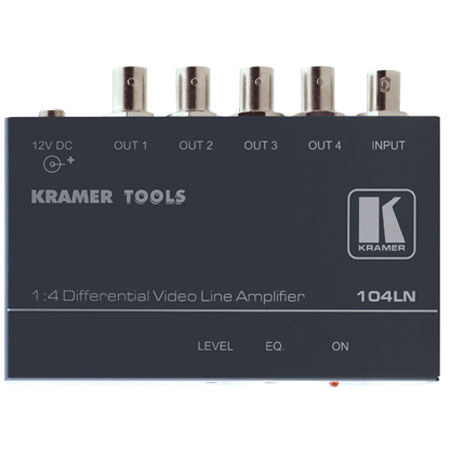

Kramer 104LN 1:4 Composite Video Differential & Line Amplifier

SKU: VDKR104LN MFR: 104LN
What's Included
What's Included With This Item:
  • Kramer 104LN 1:4 Composite Video Differential & Line Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$144.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer 104LN is a high-performance line amplifier for composite and SDI video signals. It includes differential circuitry to help eliminate noise often found on the input cable in a long run.

What's Included With This Item

  • Kramer 104LN 1:4 Composite Video Differential & Line Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth - 423MHz (-3dB)
  • Level (Gain) and EQ (Peaking) Controls
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input 1 video (CV IN), differential, 1Vpp/75 Ohm, on a BNC connector
Outputs 4 video, 1Vpp/75 Ohm on BNC connectors
Max. Output Level 1.6Vpp
Bandwidth (-3dB) 423MHz
Diff. Gain 0.22%
Diff. Phase 0.1 Deg
K-factor <0.05%
S/N Ratio 73.3dB
Control Level: -1.3 to 6dB; EQ. 0 to 10.2dB
Coupling DC
Power Source 12V DC, 95mA
Dimensions 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98"), (W x D x H)
Weight 0.3kg (0.66lbs) approx
Warranty Kramer 7 years limited warranty
