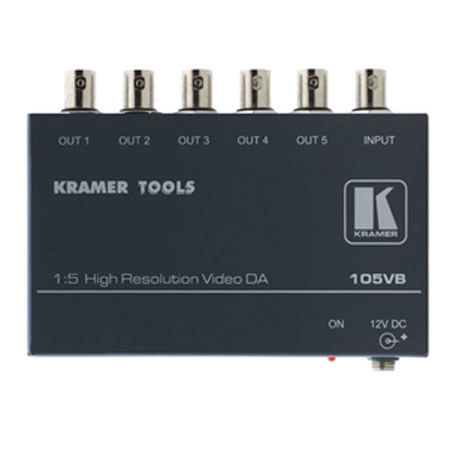

Kramer 105VB 1:5 Composite Video Distribution Amplifier
Kramer Electronics

Kramer 105VB 1:5 Composite Video Distribution Amplifier

SKU: VDKR105VB MFR: 105VB
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer 105VB 1:5 Composite Video Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$144.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer 105VB is a high-performance distribution amplifier for composite video signals. It takes one input, provides correct buffering and isolation and distributes the signal to five identical outputs.

What's Included With This Item

  • Kramer 105VB 1:5 Composite Video Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Key Features

  • Bandwidth - 400MHz (-3dB)
  • Connectors - BNC (105V has RCAs)
  • Level (Gain) Control
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input 1 video, 1Vpp/75 Ohm on a BNC connector
Outputs 5 video, 1Vpp/75 Ohm on BNC connectors
Max. Video Output 2Vpp
Video Bandwidth (-3dB) 400MHz
Diff. Gain 0.10%
Diff. Phase 0.1 Deg
K-factor <0.05%
S/N Ratio 80dB
Control Up to +6dB
Coupling AC
Power Source 12V DC, 100mA
Dimensions 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") (W x D x H)
Weight 0.3kg (0.6lbs) approx
Warranty Kramer 7 years limited warranty
