Kramer 106 1:2 Microphone Line / Distribution Amplifier
Kramer Electronics

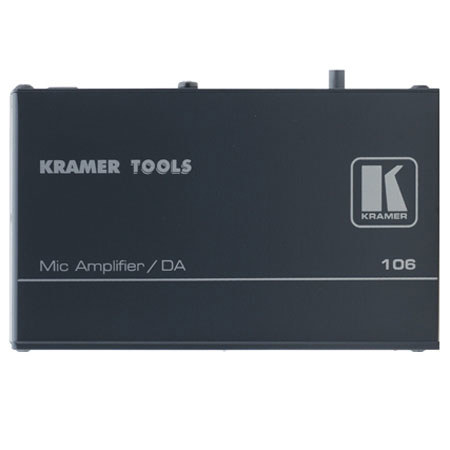

Kramer 106 1:2 Microphone Line & Distribution Amplifier

SKU: VDKR106 MFR: 106
What's Included
What's Included With This Item:
  • Kramer 106 1:2 Microphone Line & Distribution Amplifier
  • Power Supply 12V DC-500mA
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$124.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer 106 is a high-quality line & distribution amplifier for balanced mono microphone signals. It takes one dynamic or condenser microphone input and distributes the signal to two line-level outputs.

What's Included With This Item

  • Kramer 106 1:2 Microphone Line & Distribution Amplifier
  • Power Supply 12V DC-500mA
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Key Features

  • Mic Input Selector - Condenser or dynamic
  • Phantom Power - 48V DC
  • S/N Ratio - 81dB
  • Level (Gain) Controls - Individual (-14 to +68dB) and master (+37 to +68dB) output adjustments
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input 1 microphone mono balanced on 3-pin terminal block connector
Outputs 2 mono balanced line outputs on 3-pin terminal block connectors
Max. Output Level 27Vpp (22dBu)
Bandwidth >40kHz
S/N Ratio 81dB
Controls Mic. Type selector pushbutton, -14dB to +68dB LINE OUT trimmers (MASTER trimmer at max.), +37dB to +68dB master trimmer (LINE OUT trimmer at max.
Coupling Input: AC, Output: DC
Audio THD +noise 0.18%
Audio 2nd Harmonic 0.16%
Power Source 12V DC, 132mA
Dimensions 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W x D x H
Weight 0.3kg (0.66lbs) approx
Warranty Kramer 7 years limited warranty
