Kramer 123VXL 1:3 Video Differential Line Amplifier
Kramer Electronics

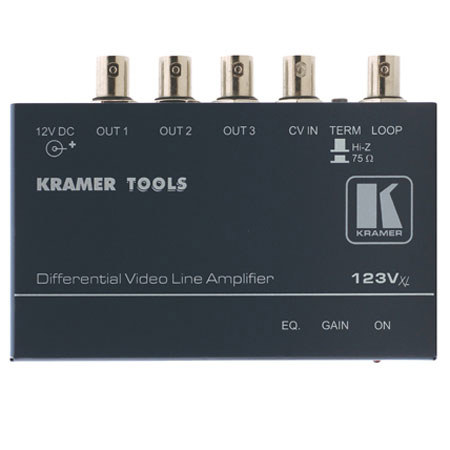

Kramer 123VXL 1:3 Composite Video Differential Line Amplifier

SKU: VDKR123VXL MFR: 123VXL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer 123VXL 1:3 Composite Video Differential Line Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$144.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer 123VXL is a high-performance line amplifier for composite or SDI video signals. It includes controls and circuitry to compensate for signal losses and noise inherent in long cable runs.

What's Included With This Item

  • Kramer 123VXL 1:3 Composite Video Differential Line Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth - 425MHz (-3dB)
  • Differential Circuitry - Reduces noise & hum found in long cable runs
  • Level (Gain) and EQ (Peaking) Controls
  • Looping Input
  • Selectable Input Signal Termination
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input 1 looping video, differential, 1Vpp/75 Ohm on a BNC connector
Outputs 3 video, 1Vpp/75 Ohm on BNC connectors
Max. Output Level 1.7Vpp
Bandwidth (-3dB) 425MHz
Diff. Gain 0.50%
Diff. Phase 0.3Deg
K-factor <0.05%
S/N Ratio 60.3dB
Controls Level: -1.8dB to +5.6dB, EQ.: 0 to +15dB @5.8MHz, 75 Ohm termination switch
Coupling AC
Power Source 12V DC, 80 mA
Dimensions 12cm x 7.5cm x 2.5 cm (4.7" x 2.95" x 0.98") W x D x H
Weight 0.3kg (0.66lbs) approx
Warranty Kramer 7 years limited warranty
