Kramer Electronics 6410N Audio Format Converter
Kramer Electronics

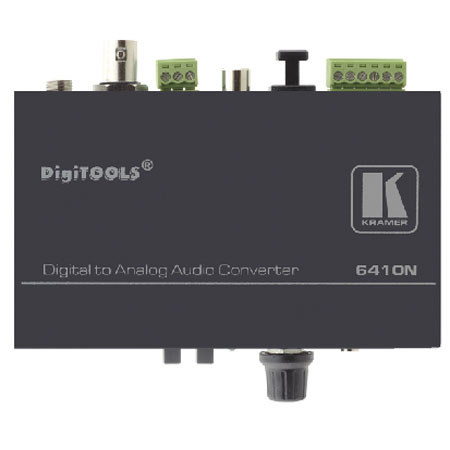

Kramer Electronics 6410N Digital Audio to Balanced Stereo Audio Format Converter

SKU: VDKR6410N MFR: 6410N
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics 6410N Digital to Analog Audio Format Converter
  • Converter
  • Power Supply
  • Mounting Bracket
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$574.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The 6410N Digital Audio to Balanced Stereo Audio Format Converter from Comprehensive/Kramer Electronics is a format converter designed for use with digital audio signals. It will manage conversion of AES/EBU, AES-ID3, S/PDIF, or Toslink optical digital audio signals to (2) channels of balanced audio and a headphone output.

This solution is well suited for use in audio broadcast & production studios, non-linear editing facilities and diagnostic & field operation work, among many other possibilities. Up to (3) of these units can be mounted side by side in 1U of rack space by using the separately available RK-3T rack adapter.

What's Included With This Item

  • Kramer Electronics 6410N Digital to Analog Audio Format Converter
  • Converter
  • Power Supply
  • Mounting Bracket
  • Kramer Electronics Warranty

Key Features

  • Multi-Format Digital Audio Conversion: This unit can be used to convert AES/EBU, AES-ID3, S/PDIF, or Toslink optical digital audio signals to (2) channels of balanced audio and a headphone output
  • Multiple Applications: Use this solution in audio broadcast & production studios, non-linear editing facilities and diagnostic & field operation work, among many other possible work environments
  • Small Footprint: This unit's small size makes it easy to install on a desktop or in a rack

Technical Specs

Inputs 4 digital audio inputs: AES-3id on a terminal block connector; AES/EBU on a BNC connector; S/PDIF on an RCA connector; TOSLINK optical connector
Outputs 2 analog outputs: balanced line out on detachable terminal blocks; 3.5mm headphone jack
Sample Rate Conversion 32kHz, 44.1kHz, 48kHz, 96kHz
Conversion Gain +12dB, +16dB, +20dB, +24dB
Bandwidth (+4dBu/-3dBu) 20Hz to 22kHz
Max. Output Level 11.2Vpp @1kHz
S/n Ratio 88dB
Audio THD + Noise -92dB
Audio 2nd Harmonic 0.003%
Controls Input selector buttons, 8 gain switches, headphones level rotary control knob, 2 LEDs: ON and LINK
Power Source 12V DC, 1.25A
Dimensions (H x W x D) 0.96 x 4.72 x 2.74" (2.44 x 12 x 6.95cm)
Weight 0.66 lbs (0.3kg)
