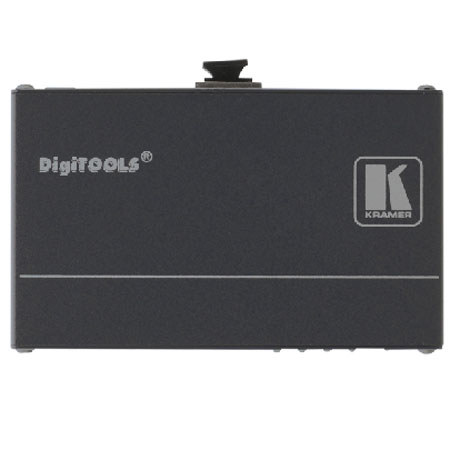

Kramer Electronics 670T Fiber Optic Transmitter, 3.5Gbps Max Data Rate
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Ways to Save
The Kramer Electronics 670T Fiber Optic Transmitter converts an HDMI signal to light pulses and transmits it to the 670R receiver over a single fiber optic cable. When coupled with a 670R Receiver, the 670T Fiber Optic Transmitter allows transmission of 4 TMDS video channels and 1 low-speed channel via multimode fiber optic OM3 cable for passing HDCP, EDID and HPD (Hot Plug Detect) signals.
Along with data rates up to 10.2Gbps, the 670T Fiber Optic Transmitter supports a range up to 5570' (1700m). It is compatible with HDMI signals (V.1.4 with Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC) and 3D signals. Being compact (4.7 x 3.1 x 1.08" / 12 x 7.95 x 2.76 cm), 3 receivers can be rack-mounted side by side in a 1U rack space with the optional RK-3T rack adaptor.
|Outputs||1 optical connector|
|Bandwidth||Supports up to 3.5Gbps bandwidth per graphic channel|
|Compliance||Supports HDMI 1.3, using fiber optic communication links and DDC2B|
|Extension||1700m (>5570 feet) for 1080p/60Hz.|
|Power Source||5V DC, 250mA|
|Dimensions (W x D x H )||12cm x 7.95cm x 2.76cm (4.7" x 3.1" x 1.08")|
|Weight||0.3kg (0.67lbs) approx. each|
