Kramer Electronics 6809HD HD-SDI and SDI Audio Embedder
Kramer Electronics

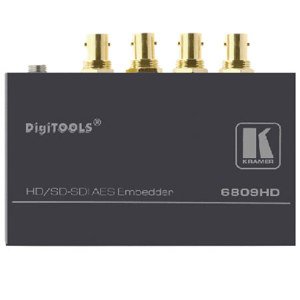

Kramer Electronics 6809HD HD-SDI and SDI Audio Embedder, HDTV Compatible

SKU: VDKR6809HD MFR: 6809HD
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics 6809HD HD-SDI & SDI Audio Embedder
  • Power Supply
  • Mounting Bracket
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$821.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The 6809HD HD-SDI & SDI Audio Embedder from Kramer Electronics is designed for use with HD-SDI and SDI (SMPTE 259M) video signals. The device accepts the HD-SDI and AES-3id audio signals. It then outputs both signals embedded on a single SDI signal. Group select allows you to choose which audio channels to embed.

What's Included With This Item

  • Kramer Electronics 6809HD HD-SDI & SDI Audio Embedder
  • Power Supply
  • Mounting Bracket
  • Kramer Electronics Warranty

Key Features

  • HDTV Compatible
  • Input - HD-SDI & 2 AES-3id
  • Output - 1 SDI with embedded audio - cable equalized and reclocked up to 350m (1150ft)
  • No Format or Resolution Conversion
  • Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
  • Group Select - Select which 2 of the 4 audio channels to embed
  • Status - Audio and SDI or HD-SDI video input status LEDs
  • Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

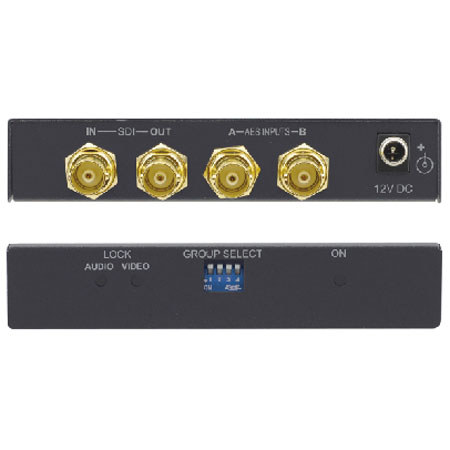

Technical Specs

Inputs 1 x HD-SDI
2 x AES-3id on BNC connectors
Outputs 1 x HD-SDI on a BNC connector
Controls Group select
Power Source 12V DC, 450mA
Dimensions (W x D x H ) 12cm x 6.95cm x 2.44cm (4.7" x 2.74" x 0.96")
Weight 0.3kg (0.66lbs)
