Kramer Electronics 710 Y/C Over Twisted Pair Receiver
Kramer Electronics

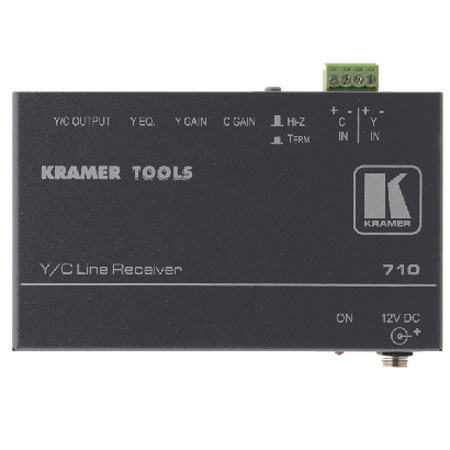

Kramer Electronics 710 Y/C Over Twisted Pair Receiver

SKU: VDKR710 MFR: 710
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics 710 Y/C Over Twisted Pair Receiver
  • AC Power Supply
  • Mounting Bracket
  • Kramer Electronics Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$134.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics 710 Y/C Receiver

The Kramer Electronics 710 is a twisted pair receiver for s-Video (Y/C) signals. The 709 transmitter converts an s-Video (Y/C) signal into a twisted pair signal and the 710 receiver converts the twisted pair signal back into an s-Video (Y/C) signal.

Kramer Electronics 710 Y/C Receiver Includes

  • Kramer Electronics 710 Y/C Over Twisted Pair Receiver
  • AC Power Supply
  • Mounting Bracket
  • Kramer Electronics Warranty

Kramer Electronics 710 Y/C Receiver Features

  • Twisted Pair: This unit receives a video signal from a twisted pair source (709) and converts it to Y/C for video usage
  • Gain and EQ: Gain and EQ adjustments are offered to optimize signal levels for the effective cable length
  • Compact Size: Less than 5" at it's longest dimension, this unit will fit in almost any production situation

Kramer Electronics 710 Y/C Receiver Specifications

Input 4-pin terminal block
Outputs s-Video, 1-Vpp/75ohm (Y), 0.3Vpp/75ohm (c) on a 4-pin connector
Video Bandwidth (-3db) 14.3MHz, (Y) at 100m
Gain Range -2.4 to +6.5 dB (Y), -2.7 to 15.6 dB, (EQ.), -5.8 to +7.8 dB
Non-linearity 0.07%
Diff. Gain 0.04%
Video S/N Ratio Better than 60dB
Power Source 12V DC 40mA
Dimensions (W x D x H) 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98")
Weight 0.26kg (0.58lbs) approx
