Kramer Electronics FC-31xl Graphics Video-DVI Converter
Kramer Electronics

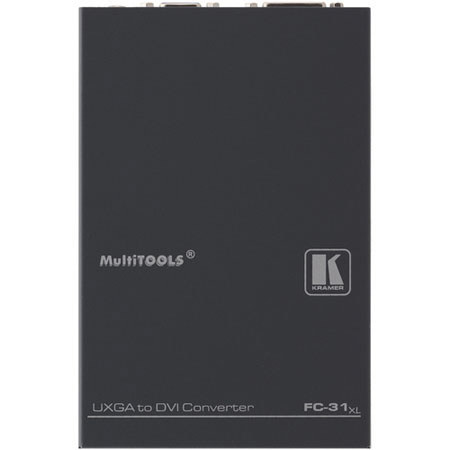

Kramer Electronics FC-31xl Computer Graphics Video to DVI Format Converter

SKU: VDKRFC31XL MFR: FC-31XL
What's Included
What's Included With This Item:
  • Kramer Electronics FC-31xl Graphics Video-DVI Format Converter
  • Power Cord
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$300.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer Electronics FC-31xl Computer Graphics Video to DVI Format Converter allows you to convert a computer graphics input (with resolutions up to WUXGA) to a DVI-D output and has a maximum data rate of up to 1.65GHz. With a DIP switch, you can control the H & V position and sharpness of the signals. Being compact (4.21 x 6.26 x 1.59" / 10.7x 15.9 x 4 cm), 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adaptor.

What's Included With This Item

  • Kramer Electronics FC-31xl Graphics Video-DVI Format Converter
  • Power Cord
  • Kramer Electronics Warranty

Key Features

  • Converts a computer graphics input (with resolutions up to WUXGA) to a DVI-D output
  • Maximum data rate of up to 1.65GHz
  • DIP switch - controls the H & V position and sharpness of the signals
  • Compact size - 4.21 x 6.26 x 1.59" (10.7x 15.9 x 4 cm)
  • 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adaptor

Technical Specs

Inputs 1 UXGA on a 15-pin HD connector
Outputs DVI, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL)
Supported Resolutions 640x480 @60Hz/72Hz/75Hz/85Hz; 720x400 @70Hz/85Hz; 800x600 @56Hz/60Hz/72Hz/75Hz/85Hz; 848x480 @60Hz; 1024x768 @60Hz/72Hz/75Hz/85Hz; 1152x864 @75Hz; 1280x768 @60Hz (RB)/75Hz/85Hz; 1280x800 @60Hz; 1280x960 @60Hz/85Hz; 1280x1024 @60Hz/75Hz/85Hz; 1360x768 @60Hz; 1400x1050 @60Hz(RB)/75Hz; 1440x900 @60Hz; 1440x1050 @60Hz; 1600x1200 @60Hz; 1680x1050 @60Hz; 1920x1080 @60Hz; 1920x1200 @60Hz(RB).
Bandwidth 1.65GHz
Controls DIP-switches
Coupling DC
Power Source 12V, 180mA
Dimensions (W x D x H) 10.7cm x 15.9cm x 4.0cm (4.21" x 6.26" x 1.59")
Weight 0.15kg (0.55lbs) approx
