Kramer Electronics PT-102AN 1:2 Stereo Audio Amplifier
Kramer Electronics

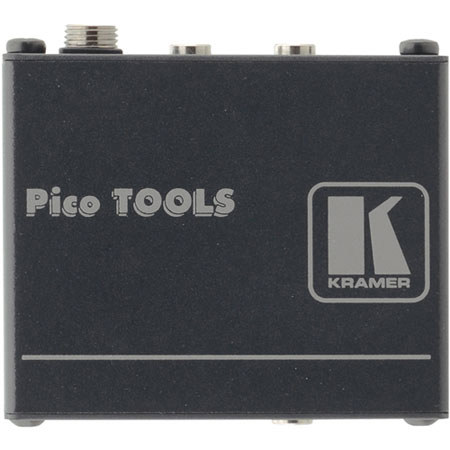

Kramer Electronics PT-102AN 1:2 Stereo Audio Distribution Amplifier, 85dB S/N Ratio

SKU: VDKRPT102AN MFR: PT-102AN
What's Included
What's Included With This Item:
  • Kramer Electronics PT-102AN 1:2 Stereo Audio Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$88.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The PT-102AN 1:2 Stereo Audio Distribution Amplifier from Kramer Electronics accepts one stereo input and distributes the signal to two identical stereo outputs. It offers gain (level) control and a signal-to-noise ratio of 85dB. This unit belongs to the Ultra-Compact Pico TOOLS family of products and up to (4) units can be mounted side by side in 1U of rack space using the optional RK-4PT rack adapter.

What's Included With This Item

  • Kramer Electronics PT-102AN 1:2 Stereo Audio Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer Electronics Warranty

Key Features

  • Level (gain) control is a standard feature
  • It offers a signal-to-noise ratio of 85dB
  • This unit belongs to the Ultra-Compact Pico TOOLS family of products and up to (4) units can be mounted side by side in 1U of rack space using the optional RK-4PT rack adapter

Technical Specs

Input 1 unbalanced stereo audio on a 3.5mm mini jack
Outputs 2 unbalanced stereo audio on 3.5mm mini jacks
MAX. Output Level 5Vpp
Bandwidth (-3dB) >100kHz
S/N Ratio 85dB @1kHz
Controls Level: -55dB to +20dB
Coupling AC
Audio THD + NOISE 0.01% @1kHz
Audio 2nd Harmonic 0.004% @1kHz
Power Source 12V DC, 20mA
Dimensions (W x D x H) 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96")
Weight 0.14kg (0.31lbs) approx
