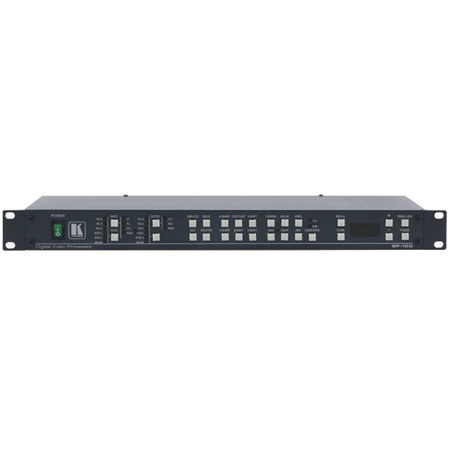

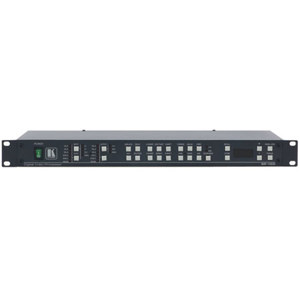

Kramer SP10D Multi-Format Video Processor and Converter
Kramer Electronics

Kramer SP-10D Multi-Format Analog Video Processor/ProcAmp/TBC/Format & Standards Converter

SKU: VDKRSP10D MFR: SP10D
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer SP-10D Analog Video Processor Standards Converter
  • Power Cord
  • Null-Modem Adapter
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,396.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer SP-10D is a broadcast quality video processor that functions as a ProcAmp, a TBC, a format converter and a standards converter for composite video, s-Video (Y/C) and RGB/component video (YUV or RGBS) video signals. The original and processed image can be viewed simultaneously with the split screen output enabled.

What's Included With This Item

  • Kramer SP-10D Analog Video Processor Standards Converter
  • Power Cord
  • Null-Modem Adapter
  • Kramer 7 Years Limited Warranty

Key Features

  • Bandwidth - 5MHz (-0.5dB)
  • Multi-Format Capability - Selected input is simultaneously output as composite video, s-Video and component video (YUV or RGBS)
  • Multi-Standard - NTSC 3.58/4.43, PAL-B/D/G/H/I/M/N and SECAM
  • Standards Conversion - The unit will convert any input video standard to any other video standard (NTSC 3.58/4.43, PAL-B/D/G/H/I/M/N and SECAM)
  • ProcAmp Features - Contrast, brightness, color, hue
  • H/V sharpness, level/gain (R, G, B, R-Y & B-Y)
  • Built-in Time Base Corrector
  • Screen Splitter Feature - Simultaneous display of original video and processed video on a single screen (adjustable)
  • Timing Controls - Video delay, H/V delay & SCH phase
  • Switching Synchronization Option - Synchronize either to external reference or internal genlock sync generator
  • Looping Sync Input
  • Selectable Sync Signal Termination
  • 10-Bit Digital Processing
  • Multiple Memory Locations - Store 15 multiple switches as presets (salvos)
  • Flexible Control Options - Front panel and RS-232
  • Front Panel Lockout
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1RU

Technical Specs

Input 1 composite video: 1Vpp/75 Ohm on a BNC connector
1 YC: 1Vpp/75 Ohm (Y), 0.3Vpp/75 Ohm on a 4-pin connector
1 component: Y/R-Y/B-Y (1Vpp/0.7Vpp/0.7Vpp)/75 Ohm (or RGB/S) on BNC connectors
1 SYNC (Genlock): looped 75 Ohm/Hi-Z on BNC connectors
Output 1 composite video: 1Vpp/75 Ohm on a BNC connector
1 YC: 1Vpp/75 Ohm (Y), 0.3Vpp/75 Ohm on a 4-pin connector
1 component: Y/R-Y/B-Y (1Vpp/0.7Vpp/0.7Vpp)/75 Ohm (or RGB/S) on BNC connectors
Video Standards PAL-B/D/G/H/I/M/N, NTSC-3.58/4.43, SECAM
Digital Resolution 10 bits
Bandwidth 5MHz (-0.5dB)
Diff. Gain 1%
Diff. Phase 1%
K-factor 0.40%
S/N Ratio 60dB
Luma Non-linearity 1%
Chroma/luma Delay <15ns
Memory Non-volatile memory for storing 16 setups
Controls Front-panel and RS-232: Contrast, brightness, video gain, color, hue, H/V sharpness, SCH phase, delay, H/V shift; R, G, B, R-Y, B-Y level; screen splitter (process to bypass); freeze; panel lock
Power Source Universal, 100-240V AC, 50/60Hz
Max Power Consumption 27VA
Dimensions 19" x 7" x 1U W x D x H, rack mountable
Weight 2.6kg (5.7lbs) approx
Warranty Kramer 7 years limited warranty
