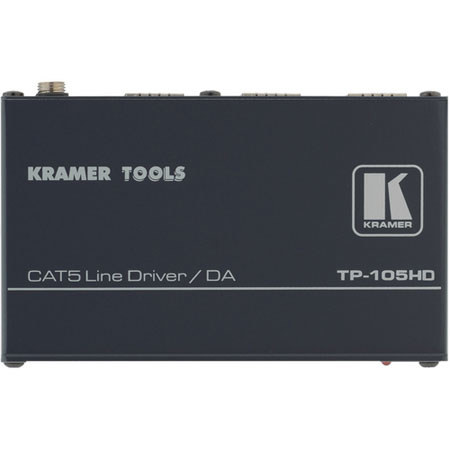

Kramer Electronics TP-105HD 1:2 Twisted Pair Line Driver and Distribution Amplifier
SKU: VDKRTP105HD
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About Kramer Electronics TP-105HD
The Kramer Electronics 1:2 Twisted Pair Line Driver & Distribution Amplifier for twisted pair signals distributes a twisted pair input to 2 identical twisted pair outputs; it is suitable for presentation and multimedia applications as well as long range graphics distribution for schools, hospitals, security and stores. The HDTV compatible amplifier offers a maximum resolution of WUXGA (Widescreen Ultra eXtended Graphics Array) and 1080p.
The distribution amplifier uses UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) cables such as CAT 5. When connected to the transmitter or receiver, the power connect system feature provides power to both the units when they are within the range of 150ft (50m) from each other. The amplifier includes level (gain) and EQ (peaking) controls as well as an EQ trimmer for adjusting the EQ (equalization) compensation; a level trimmer adjusts the video signal level.
Kramer Electronics TP-105HD Features
- For twisted pair signals
- Takes a twisted pair input and distributes it to 2 identical twisted pair outputs
- Ideal for presentation and multimedia applications, long range graphics distribution for schools, hospitals, security and stores
- HDTV compatible
- Maximum resolution of WUXGA and 1080p
- Uses UTP or STP cables such as CAT 5
- Power connect system: Powers transmitter or receiver when they are within 150ft (50m) of each other
- Includes level (gain) and EQ (Peaking) Controls
- EQ trimmer: Adjusts the EQ (equalization) compensation
- Level trimmer: Adjusts the video signal level
- Optional RK-3T rack adapter
- System range: Up to 320ft (100m)
- Twisted pair output: RJ-45 connectors
- Input: 1 RJ-45 connector
- Output: 2 RJ-45 connectors
