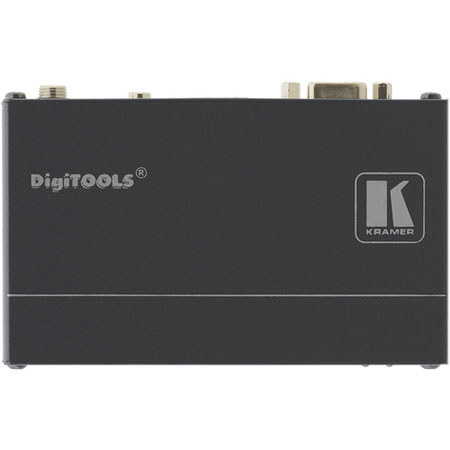

Kramer Electronics TP-123-OD Video/Audio Transmitter
Kramer Electronics

Kramer Electronics TP-123-OD XGA/Stereo Audio/RS-232 Over Twisted Pair Transmitter

SKU: VDKRTP123OD MFR: TP-123-OD
What's Included
What's Included With This Item:
  • Kramer Electronics TP-123-OD Video and Audio Transmitter
  • Power Supply
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$320.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer Electronics XGA/Stereo Audio/RS-232 over Twisted Pair Transmitter sends computer graphics video up to WUXGA/1080p, unbalanced stereo analog audio and unidirectional RS-232 control command signals via a twisted pair cable. When used with the TP-124-od twisted pair receiver, the transmitter provides a transmission distance of more than 300' (100m).

With EDID capture, the XGA/Stereo Audio/RS-232 over Twisted Pair Transmitter copies and stores EDID information and avoids compatibility issues with the connected display if any in the future. Via EMP protection, it offers protection against voltage surges induced by electromagnetic field of a nearby lightning strike. However, it does not protect against direct lightning strikes.

The XGA/Stereo Audio/RS-232 over Twisted Pair Transmitter requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 150' (50m) of each other. In addition, 3 units can be mounted side-by-side in 1U rack space with the optional RK-3T rack adaptor.

What's Included With This Item

  • Kramer Electronics TP-123-OD Video and Audio Transmitter
  • Power Supply
  • Kramer Electronics Warranty

Key Features

  • EMP Protection: Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes
  • EDID Capture: Copies and stores the EDID from a display device
  • System Range: More than 300ft (more than 100m)
  • Cable: STP (shielded twisted pair) such as Kramer BC-STP CAT 5
  • Power Connect System: A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other
  • Compact Kramer TOOLS: 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input 1 VGA/WUXGA on a 15-pin HD connector; 1 audio ANALOG 3.5mm mini jack
Output 1 RJ-45 OUT connector
Control RS-232 2-pin terminal block
RS-232 BAUD RATE Up to 19200kbps
Bandwidth (-3dB) Audio: 20Hz to 20kHz @0.5dB
RESOLUTION Up to WUXGA and 1080p
S/N Ratio Video: 58dB unweighted, 68.3dB @5MHz weighted; Audio: <-80dB
Total gain Audio: Analog/analog: 0dB; Analog/SPDIF: -12dBFS
Coupling AC
THD+N Audio:<0.01%
Power source 12V DC, 60mA
Dimensions (W x H x D) 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95")
Weight 0.3kg (0.67lbs) approx
