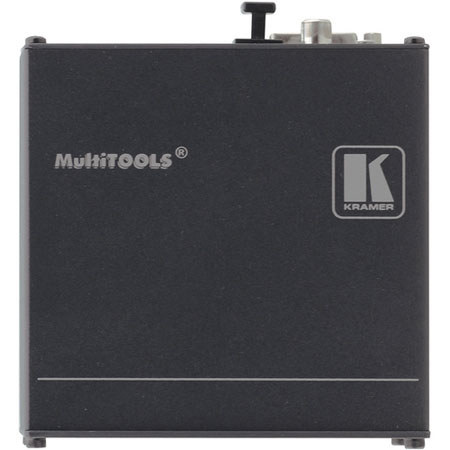

Kramer Electronics TP-953 DVI and Audio Over Twisted Pair Transmitter
SKU: VDKRTP953
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About Kramer Electronics TP-953
The Kramer Electronics TP-953 DVI & Audio over Twisted Pair Transmitter converts input signals (DVI video and unbalanced stereo, S/PDIF, TOSLINK audio signals) to a twisted pair signal. When coupled with a TP-954 Receiver, it allows transmission of signals up to a distance of 295' (90m) via STP (shielded twisted pair) cables and offers data rates up to 1.65Gbps. It is compatible with HDTV and HDCP signals, the TP-953 DVI & Audio over Twisted Pair Transmitter supports a maximum resolution of WUXGA & 1080p. The 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adaptor.
Kramer Electronics TP-953 Features
- Cable: For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6 and CAT 7 cables may not reach these ranges
- Indicator LEDs: Input & Output
- Outputs: 2 CAT 5
- System Range: Up to 90m (295ft) at XGA or up to 30m (98ft) at WUXGA on shielded BC-DGKat524 cable
