Kramer VM-100YC 1:10 S-Video Distribution Amplifier
Kramer Electronics

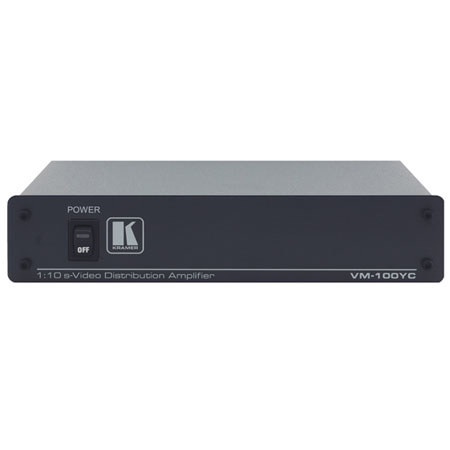

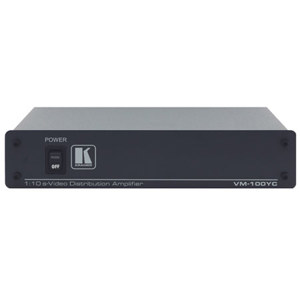

Kramer VM-100YC 1:10 S-Video Distribution Amplifier

SKU: VDKRVM100YC MFR: VM100YC
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VM-100YC 1:10 S-Video Distribution Amplifier
  • 12V DC Power Supply
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$316.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer VM-100YC is a high-performance distribution amplifier for S-Video (Y/C) signals. It takes one input, provides correct buffering and isolation and distributes the signal to ten identical outputs.

What's Included With This Item

  • Kramer VM-100YC 1:10 S-Video Distribution Amplifier
  • 12V DC Power Supply
  • Kramer 7 Years Limited Warranty

Key Features

  • Bandwidth (Y) - 275MHz (-3dB)
  • Looping Input
  • Level (Gain) Controls - Y & C (on the underside)
  • Selectable Input Signal Termination
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

Technical Specs

Input 1 s-Video: looping, 1Vpp/75 Ohm (Y), 0.3Vpp/75 Ohm (C), on 4-pin connectors with a termination switch
Output 10 s-Video: 1Vpp/75 Ohm (Y), 0.3Vpp/75 Ohm (C), on 4-pin connectors; 1 s-Video loop on a 4-pin connector
Max. Output Level 1.9Vpp/75 Ohm (Y)
Bandwidth (-3dB) 275MHz, (Y), fully loaded
Diff. Gain 0.03%
Diff. Phase 0.03 Deg
K-factor <0.05%
S/N Ratio 81.4dB
Controls Trimmers for "Y" level: -1.4 to +6dB; "C" level: -1 to +6.3dB
Coupling AC
Power Source 12V DC, 80mA
Dimensions 22cm x 18cm x 4.5cm (8.7" x 7" x 1.7") W x D x H
Weight 0.93kg (2lbs) approx
Warranty Kramer 7 years limited warranty
