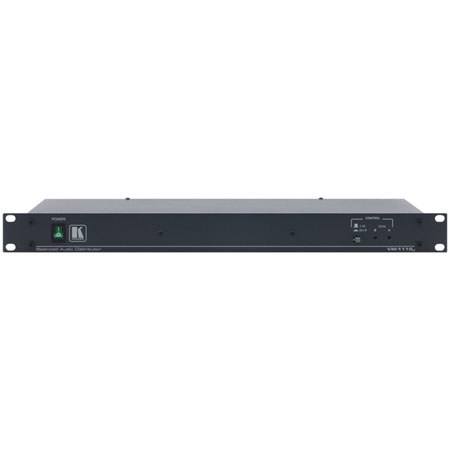

Kramer VM1110XL 1:10 Mono Audio Distribution Amplifier
Kramer Electronics

Kramer VM-1110XL 1:5 (Stereo) DA or 1:10 (Balanced) Mono Audio Distribution Amplifier

SKU: VDKRVM1110XL MFR: VM1110XL
What's Included
What's Included With This Item:
  • Kramer VM-1110XL 1:10 (Balanced) Mono Audio Distribution Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$528.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer VM-1110XL is a high-performance distribution amplifier for balanced mono audio signals on XLR connectors. It can be configured as a 1:5 distribution amplifier for stereo balanced audio signals.

What's Included With This Item

  • Kramer VM-1110XL 1:10 (Balanced) Mono Audio Distribution Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty

Key Features

  • Level (Gain) Controls
  • Dual Mode - Configure as 1:10 (mono) or 1:5 (stereo) DA
  • S/N Ratio - 89.3dB
  • Standard 19" Rack Mount Size - 1U

Technical Specs

Input 2 balanced audio +4dBu/50k Ohm on female XLR connectors
Output 10 balanced audio +4dBu/50 Ohm on male XLR connectors
Max. Output Level 23.8Vpp
Bandwidth (-3dB) >100kHz
S/N Ratio 89.3dB
Crosstalk -78dB
Controls Level (x2): -0.7dB to +5.1dB, mode selector switches
Coupling AC (input); DC (output)
Audio THD + Noise 0.081%
Audio 2nd Harmonic 0.006%
Power Source 230V AC (115V AC U.S.A) 7VA
Dimensions 19" x 7" x 1U (W x D x H) rack mountable
Weight 2.6kg (5.7lbs) approx
Warranty Kramer 7 years limited warranty
