Kramer VM5DS 1:5 Video/Audio Distribution Amplifier
Kramer Electronics

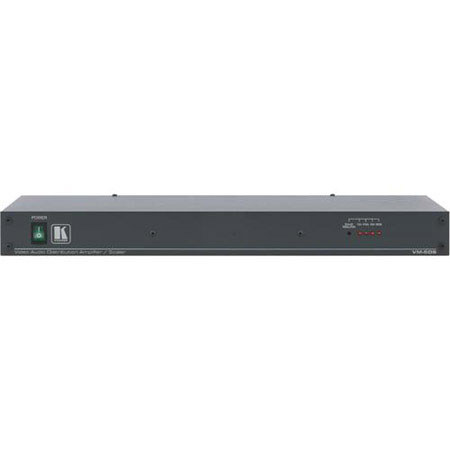

Kramer VM-5DS 1:5 Composite Video & Stereo Audio Distribution Amplifier & Scaler

SKU: VDKRVM5DSI MFR: VM5DS
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VM-5DS 1:5 Composite Video & Stereo Audio Distribution Amplifier & Scaler
  • Power Cord
  • Rack Ears
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$636.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics VM-5DS

The Kramer VM-5DS is a high quality distribution amplifier for composite video and unbalanced stereo audio signals. It takes one composite video and stereo audio input, provides correct buffering and isolation and distributes the signal to five identical audio and video outputs plus one scaled output.

Kramer Electronics VM-5DS Includes

  • Kramer VM-5DS 1:5 Composite Video & Stereo Audio Distribution Amplifier & Scaler
  • Power Cord
  • Rack Ears
  • Kramer 7 Years Limited Warranty

Kramer Electronics VM-5DS Features

  • High Video Bandwidth - 360MHz (-3dB)
  • Scaled Graphics Output Resolutions - VGA (640x480), SVGA (800x600), XGA (1024x768), or WXGA (1366x768)
  • Selectable Input Signal Termination
  • Video AC/DC Coupling Selection
  • Video Level (Gain) & EQ (Peaking) Controls - With recessed control trimmers
  • Audio Level Control
  • Looping Input
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Kramer Electronics VM-5DS Specifications

Input 1 video composite, looping, 1Vpp/75 Ohm on BNC connectors with termination switch
1 audio stereo looping, +4dBu/50k Ohm on RCA connector
Outputs 5 video composite 1 Vpp/75 Ohm on BNC connectors; 5 audio stereo, +4dBu/50 Ohm, 27Vpp max. on RCA connectors; 1 VGA through WXGA on a 15-pin HD (F) connector
Scaled Output Resolutions VGA (640x480), SVGA (800x600), XGA (1024x768), WXGA (1366x768)
Max. Video Output Level 2.2Vpp
Bandwidth (-3dB) Video: 360MHz. Audio: 60kHz
Diff. Gain 0.03%
Diff. Phase 0.06Deg
K-factor 0.05%
S/N Ratio Video: 76dB; Audio: 85dB
Controls Video gain: -1 to +1.8dB, audio gain: -40 to +6dB; EQ.: 0 to +2.5dB, audio: 0.2 to +6dB
Coupling Video: DC/AC selectable; Audio: AC
Audio THD + Noise 0.021% (1V, 1kHz)
Power Source 100-240V AC, 50/60Hz 15VA
Dimensions 19" x 7" x 1U (W x D x H) rack mountable
Weight 1.94kg (4.3lbs) approx
Warranty Kramer 7 years limited warranty
