Kramer VP-10 1:10 RGBHV Video Distribution Amplifier
Kramer Electronics

Kramer VP-10 1:10 RGBHV Video Distribution Amplifier

SKU: VDKRVP10 MFR: VP10
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VP-10 1:10 RGBHV Video Distribution Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$796.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

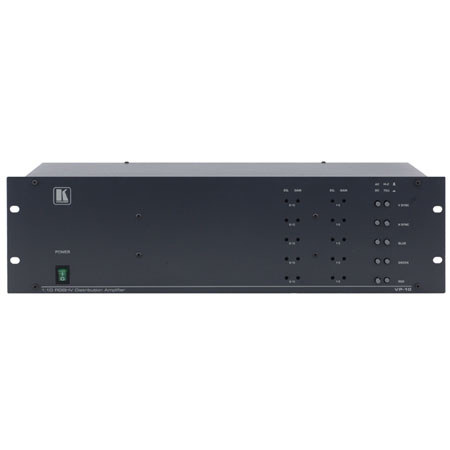

The Kramer VP-10 is a high-performance distribution amplifier for RGBHV video signals. It provides correct buffering and isolation and distribute the signal to all identical outputs.

What's Included With This Item

  • Kramer VP-10 1:10 RGBHV Video Distribution Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth - 350MHz (-3dB)
  • HDTV Compatible
  • Grouped Level (Gain) and EQ (Peaking) Controls
  • Video AC/DC Coupling Selection
  • Looping Input
  • Selectable Input Signal Termination
  • Standard 19" Rack Mount Size - 3U

Technical Specs

Input Analog red, green, blue signals, 0.7Vpp/75 Ohm, H & V syncs, TTL or analog level on BNC connectors with termination switches and AC/DC input coupling selection switches
Output 10/15/18 sets of analog red, green, blue signals, 0.7Vpp/75 Ohm, H & V syncs, TTL or analog level on BNC connectors with termination switches and AC/DC input coupling selection switches
Video Bandwidth (-3dB) 350MHz
Diff. Gain 0.12%
Diff. Phase 0.15Deg
K-factor <0.05%
Video S/N Ratio 71dB
Video Crosstalk -65dB
Control Output level -1.4 to +1.7dB; EQ. 0 to 2.3dB @5MHz for sets of 5 outputs
Power Source 230V AC, 50/60Hz, (115V AC, USA), 7VA max
Dimensions 19" x 7" x 3U W x D x H rack mountable
Weight 6kg (13.2lbs) approx
Warranty Kramer 7 years limited warranty
