Kramer VP1201 12x1 Computer Video Switcher,Scanner
Kramer Electronics

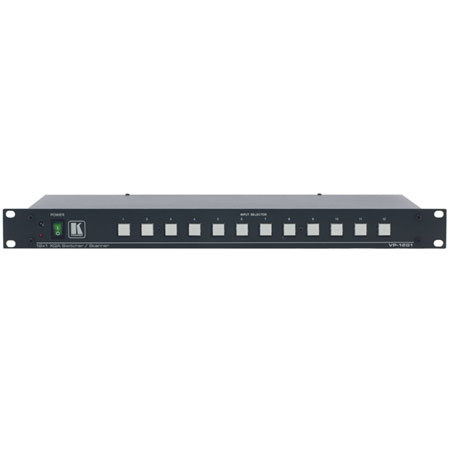

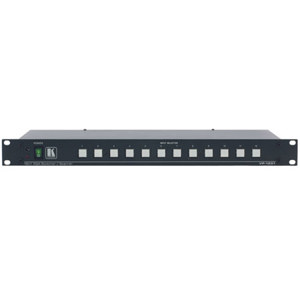

Kramer VP-1201 12x1 Computer Graphics Video Switcher & Scanner

SKU: VDKRVP1201 MFR: VP1201
What's Included
What's Included With This Item:
  • Kramer VP-1201 12x1 Computer Graphics Video Switcher & Scanner
  • Power Cord
  • Null-Modem Adapter
  • Windows-Based Kramer Control Software
  • Windows-Based Configuration Manager XPort Software and Com Port Redirector
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$796.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics VP-1201

The Kramer VP-1201 is a high-performance switcher/scanner for computer graphics video signals. When configured as a scanner, it will cycle through selected inputs at predetermined intervals.

Kramer Electronics VP-1201 Includes

  • Kramer VP-1201 12x1 Computer Graphics Video Switcher & Scanner
  • Power Cord
  • Null-Modem Adapter
  • Windows-Based Kramer Control Software
  • Windows-Based Configuration Manager XPort Software and Com Port Redirector
  • Kramer 7 Years Limited Warranty

Kramer Electronics VP-1201 Features

  • Bandwidth - 400MHz (-3dB)
  • Dual Mode - Configure as a 12x1 switcher or scanner
  • Active Input Indication Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. When an input is selected to be switched, the button changes to a different color to indicate that it is the active input
  • Scanner Mode Dwell Time - Adjustable from 1-16 seconds
  • Expandable - Cascade up to eight units for an input expansion configuration
  • Control - Front panel, RS-232, RS-485, Ethernet & IR (included)
  • Standard 19" Rack Mount Size - 1U

Kramer Electronics VP-1201 Specifications

Input 12 XGA inputs on 15-pin HD (F) connectors
Output 1 XGA output on a 15-pin HD (F) connector
Max. Output Level 1.9Vpp
Bandwidth (-3dB) 400MHz
Diff. Gain 0.03%
Diff. Phase 0.05Deg
K-factor <0.05
S/N Ratio 76dB
Crosstalk (all Hostile) -61dB @5MHz
Controls -1.3dB to +6dB, RGB level control
Coupling DC
Power Source 230V AC, 50/60Hz, (115V AC, USA)
Dimensions 19" x 7" x 1U W x D x H, rack mountable
Weight 5.5kg (12.2lbs) approx
Warranty Kramer 7 years limited warranty
