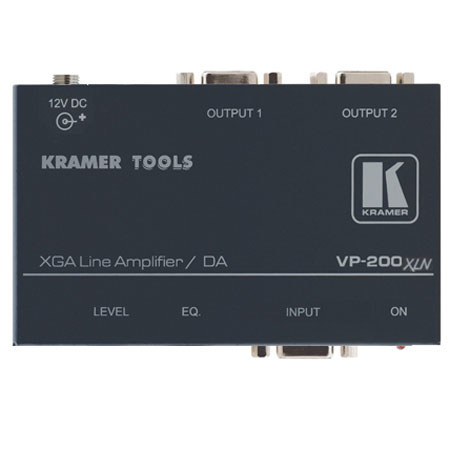

Kramer Electronics Kramer VP-200XLN 1:2 Computer Graphics Video Line & Distribution Amplifier

SKU: VDKRVP200XLN
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$225.00 List Price

Our Price

$180.00
Free Shipping
Qty:
Add to Wishlist In Stock

About the Kramer Electronics VP-200XLN

The Kramer VP-200XLN is a high-performance line and distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. It provides controls to compensate for signal losses inherent in long cable runs.

Kramer Electronics VP-200XLN Includes

  • Kramer VP-200XLN 1:2 Computer Graphics Video Line & Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Kramer Electronics VP-200XLN Features

  • High Bandwidth - 400 MHz (-3dB)
  • HDTV Compatible
  • Level (Gain) and EQ (Peaking) Controls
  • ID Bit Control
  • AC/DC Coupling Selection - Individually for R, G & B signals
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Kramer Electronics VP-200XLN Specifications

Input 1 XGA on a 15-pin HD (F) connector
Outputs 2 XGA on 15-pin HD (F) connectors
Max. Output Level 2Vpp
Bandwidth (-3dB) 400MHz
Diff. Gain 0.05%
Diff. Phase 0.03Deg
K-factor <0.05%
S/N Ratio 71dB
Controls Level: -1.5dB to +6.1dB, EQ.: 0 to +7.3dB @50MHz
Coupling AC/DC
Power Source 12V DC, 95mA
Dimensions 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08") W x D x H
Weight 0.3kg (0.67lbs) approx
Warranty Kramer 7 years limited warranty
