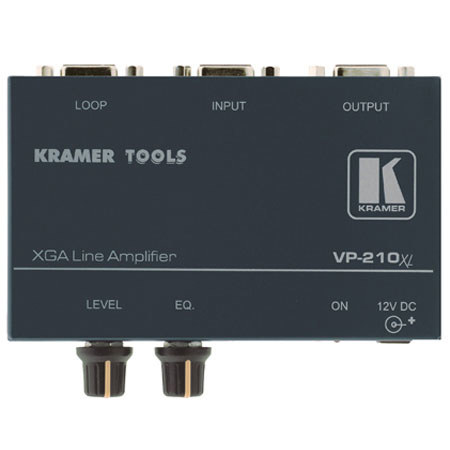

Kramer VP210XL 1:1 Video Line Amplifier
Kramer Electronics

Kramer VP-210XL 1:1 Computer Graphics Video Line Amplifier

SKU: VDKRVP210XL MFR: VP210XL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VP-210XL 1:1 Computer Graphics Video Line Amplifier
  • Power Supply
  • Mounting Brackets
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$168.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer VP-210XL is a high-performance line amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. It provides controls to compensate for signal losses inherent in long cable runs.

What's Included With This Item

  • Kramer VP-210XL 1:1 Computer Graphics Video Line Amplifier
  • Power Supply
  • Mounting Brackets
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth - 500MHz (-3dB)
  • HDTV Compatible
  • Level (Gain) and EQ (Peaking) Controls
  • Looping Input
  • Selectable Input Signal Termination
  • ID Bit Control
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input Looping analog red, green, blue signals, 0.7Vpp/75 Ohm, H & V sync, TTL level, on 15-pin HD (F) connectors
Output 1 analog red, green, blue signals, 0.7Vpp/75 Ohm, H & V syncs-TTL level, on a 15-pin HD (F) connector
Video Bandwidth (-3dB) 500MHz
Diff. Gain 0.05%
Diff. Phase 0.03Deg
Video S/N Ratio 74.8dB
K-factor <0.05%
Controls Level: 0 to +6 dB, EQ.: 0 to +8dB @50MHz
Power Source 12V DC, 60mA
Dimensions 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W x D x H
Weight 0.25kg (0.55lbs) approx
Warranty Kramer 7 years limited warranty
